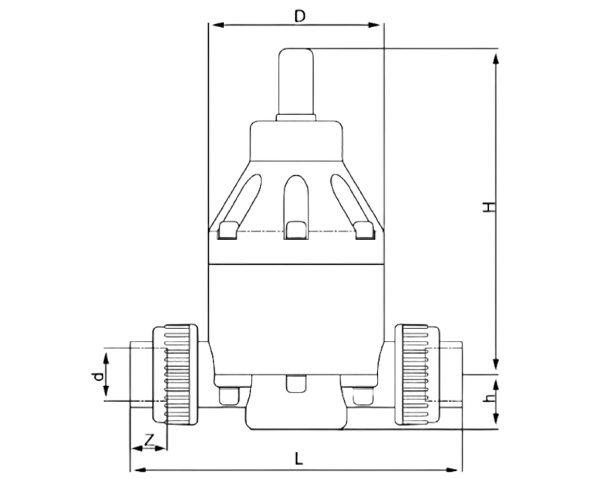

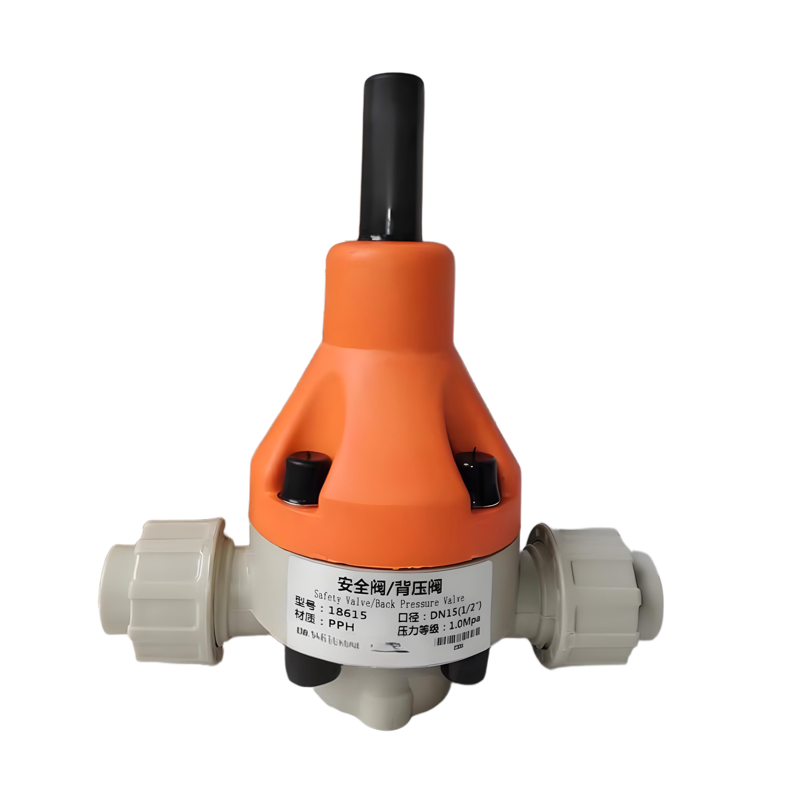

The PPH Safety Valve offers enhanced material properties for specialized applications. Comprising a seat, valve cover, diaphragm, spring, and pressure adjustment screw, this valve features two concentric chambers separated by a diaphragm that responds precisely to system pressure changes.
Release the pipeline pressure to ensure the stability of the system pressure;
Protect the safety of the pump and the normal operation of the system;
Used in conjunction with a pulse damper to reduce the harm of water hammer to the system and achieve superior low-vibration adjustment effects;
Reduce the peak value of flow rate fluctuations and protect the pipeline system from pressure fluctuations;
The diaphragm adopts advanced PTFE+rubber compound technology, which is suitable for almost all corrosive fluids, and the sealing is reliable and leak-free.

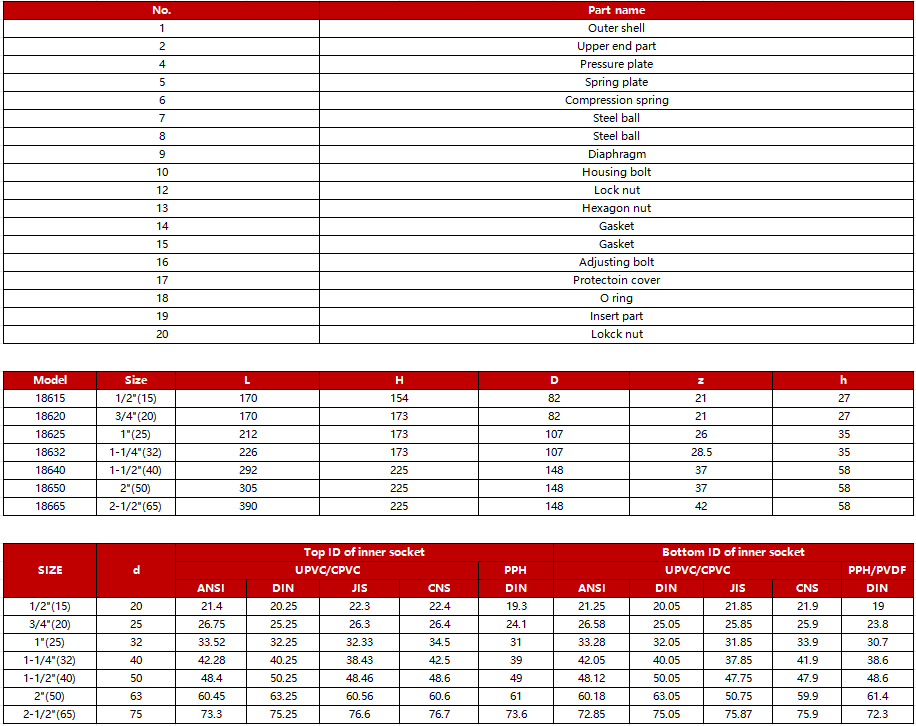

Technical Parameter
Material: UPVC/PPH/CPVC/PVDF
Working pressure: 0~1.0 Mpa, 0.2~1.6 Mpa
Size: DN15~DN65
Connect method: Socket end, flange end, thread end
Diaphragm material: PFTE+EPDM compsite
