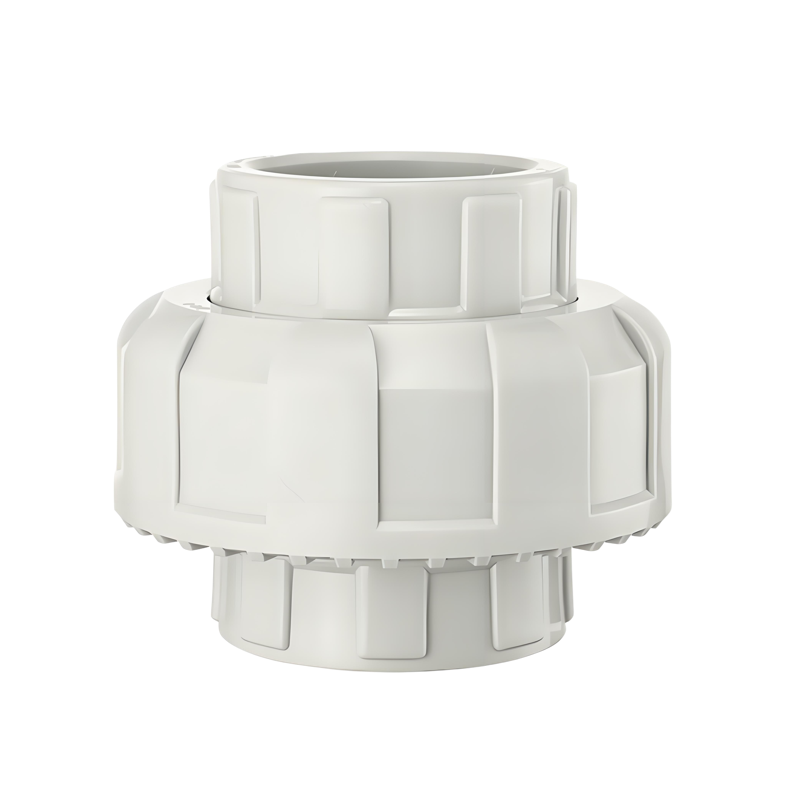

A union is a type of pipe fitting used in piping systems to connect two pipes together while allowing for easy disassembly. Unlike glued or solvent-welded joints, our PPH Union can be unscrewed, making it ideal for maintenance, repairs, or system modifications without cutting the pipe.
Key Advantages:
Simplified Maintenance – Enables quick access for cleaning or component replacement without pipe cutting.
Leak-proof Performance – Features precision-engineered gasket sealing for reliable connections.
Enhanced Chemical Resistance – PPH material withstands aggressive fluids better than standard plastics.
Thermal Stability – Maintains structural integrity in high-temperature industrial applications.

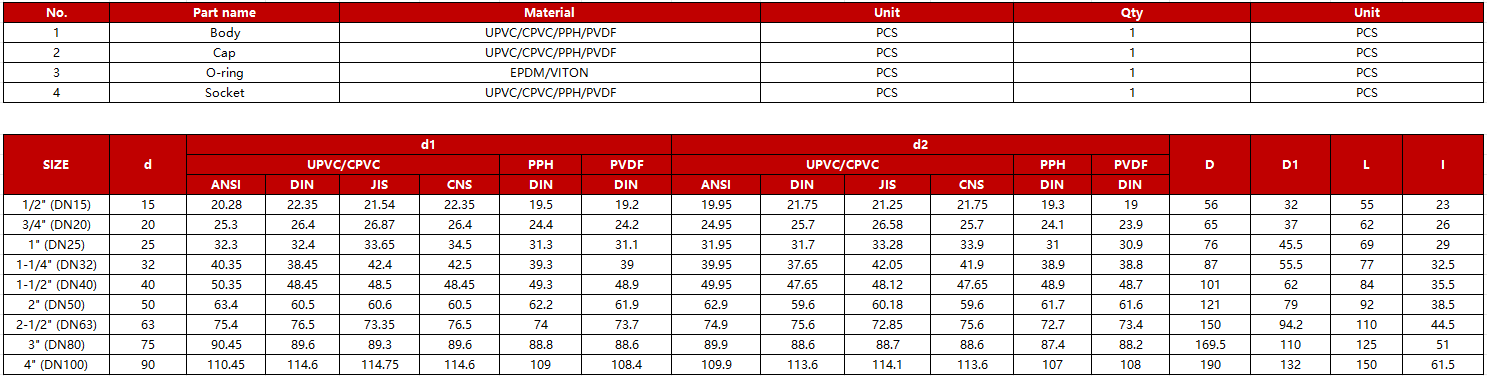

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN16 2-1/2"(DN65)-4" (DN100) PN10
