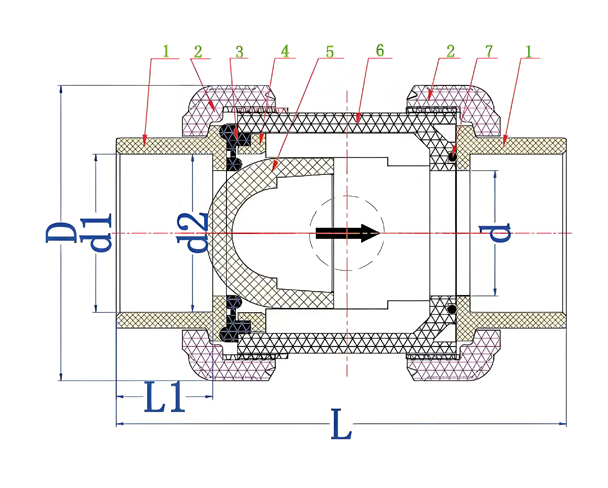

A True Union Ball Check Valve is a type of check valve designed to allow fluid flow in one direction while preventing backflow.
"True Union" means the valve has union connections on both ends, allowing for easy installation and removal without needing to cut or disassemble the entire pipeline. The PPH construction provides superior chemical and thermal resistance compared to standard plastics, making it ideal for aggressive fluid applications.

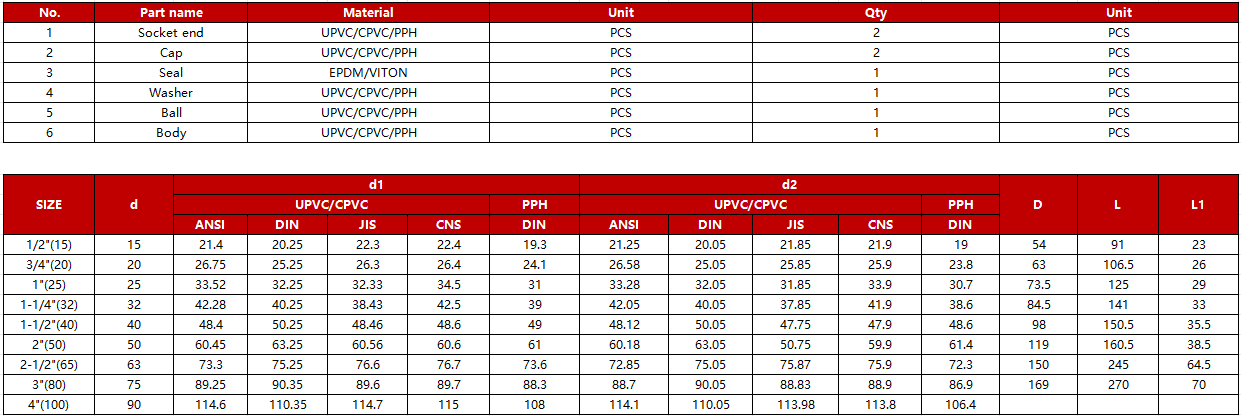

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN16 2-1/2"(DN65)-4" (DN100) PN10
