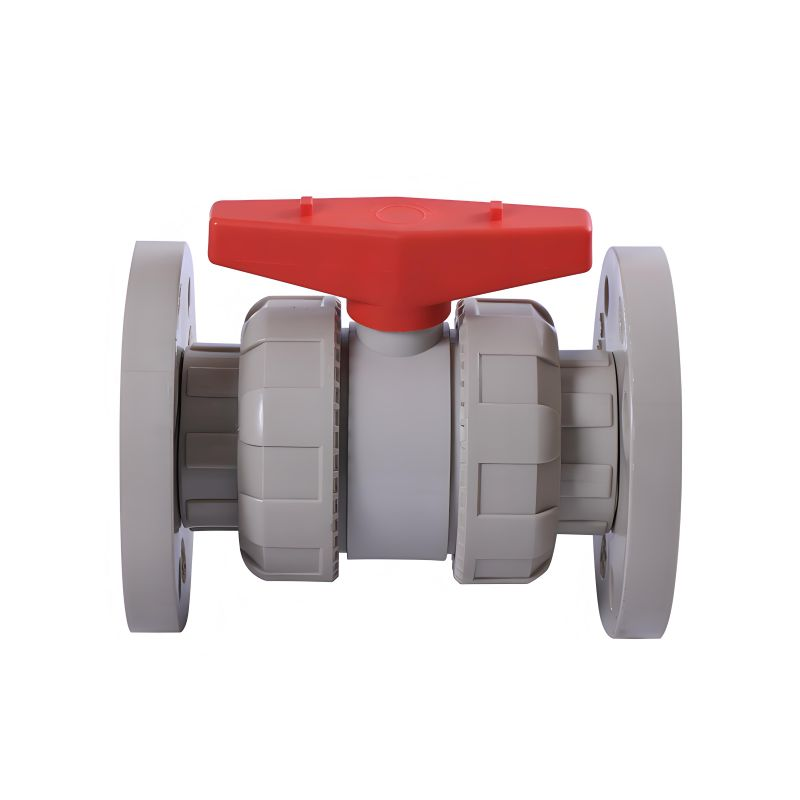

Designed for flange-connection requirements, the PPH Flange Type True Union Ball Valve combines the benefits of true union construction with flange compatibility, ensuring effortless installation and disassembly. Ideal for diverse applications—from compact equipment to large-scale pipeline systems—it meets common industrial needs with robust performance.

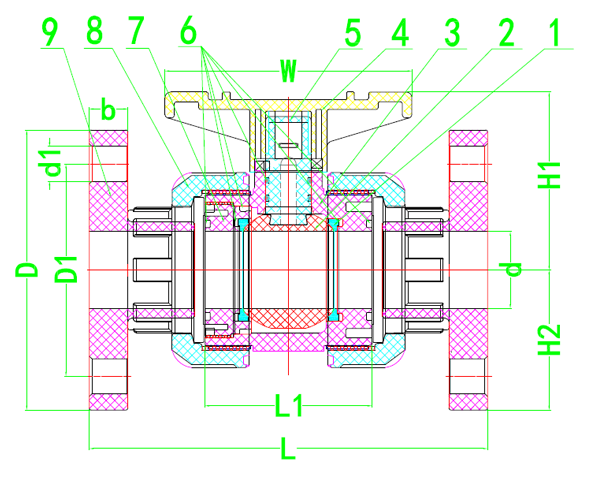

The structural of flange type true union ball valve's body is similar with true union ball valve, a design that allows isolation valve for plastic pipe to enable easy installation and removal without disturbing the entire pipeline. But flange end.

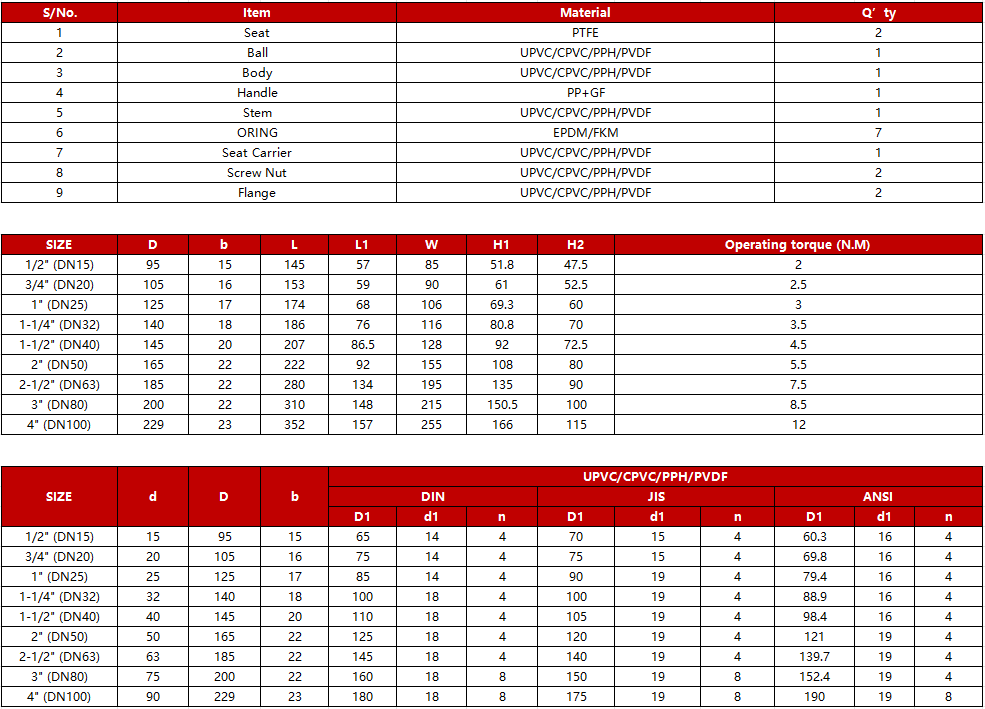

Technical Parameter
Size: 1/2"(DN15)~4"(DN100)

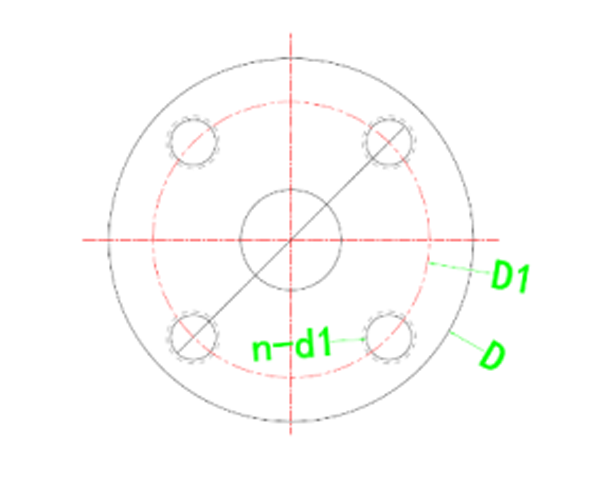

Flange end: DIN/ANSI/JIS
Prssure Rating: PN10
