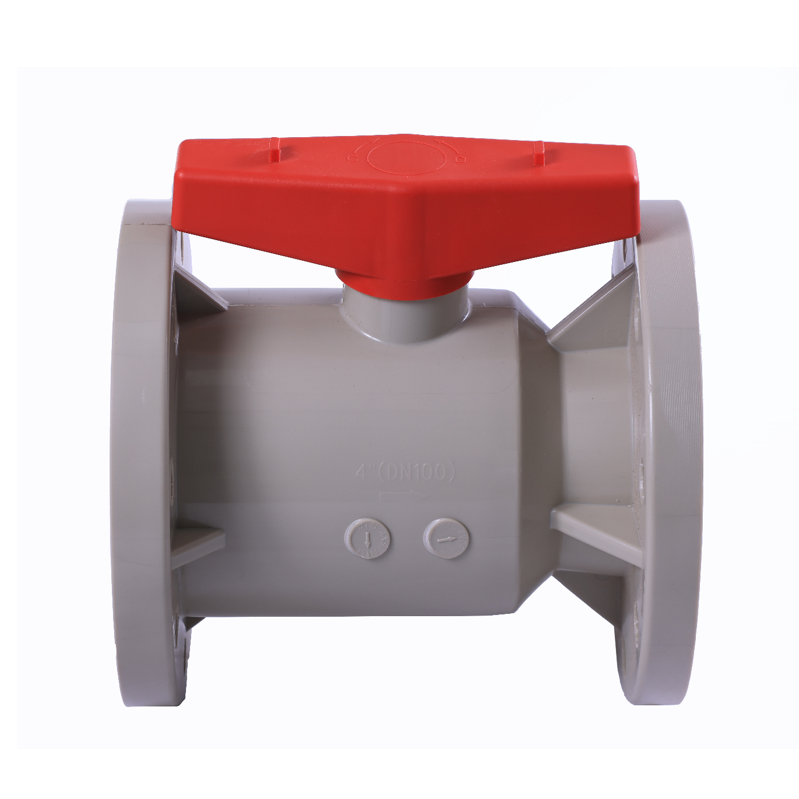

The PPH Flange Type Handle Type Ball Valve is engineered with flanged connections for secure pipeline integration, providing reliable shut-off capability in demanding industrial applications.

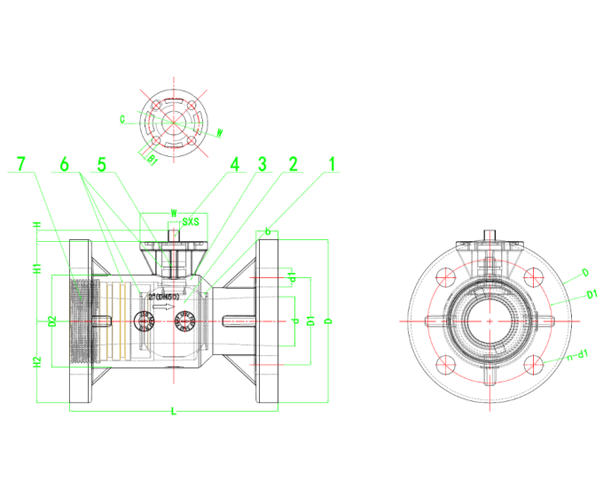

Key Structural Features:
Integrally Injection-Molded flange and valve body construction for superior leak prevention.
Reinforced Sealing System that outperforms standard union-type valves in pressure tolerance.
Streamlined Design with fewer potential leak points than conventional flanged valves.

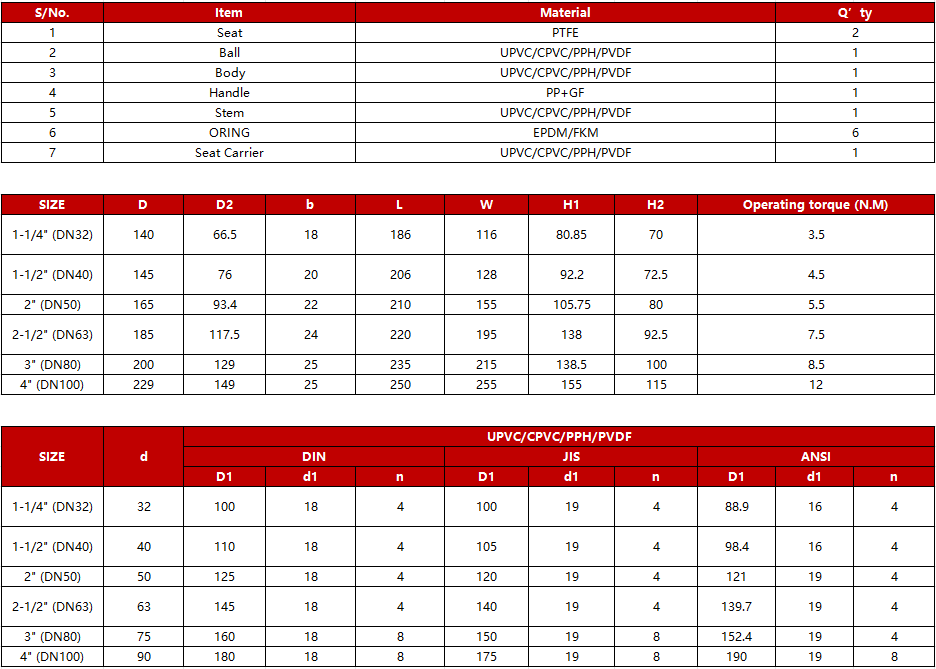

Technical Parameter
Size: 1-1/4"(DN32)~4"(DN100)
Flange end: DIN/ANSI/JIS
Prssure Rating: PN10
