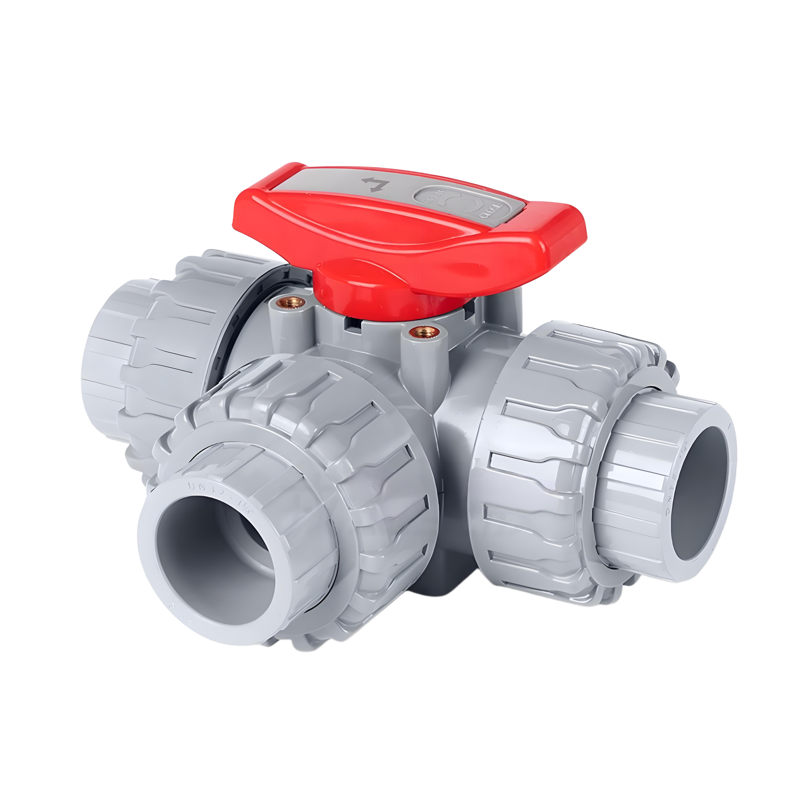

The CPVC Three Way Ball Valve effectively redirects fluid flow through 90-degree rotation of the ball. Our CPVC models are available in both T-type and L-type configurations.
The T-type CPVC three-way ball valve features three mutual perpendicular ports, enabling versatile flow distribution between all channels or isolation of the third port - ideal for flow diversion/convergence applications. In contrast, the L-type configuration only permits interconnection between two orthogonal pipelines, making it perfect for directional flow control.
Engineered with CPVC construction, these valves offer superior temperature resistance for demanding industrial applications.

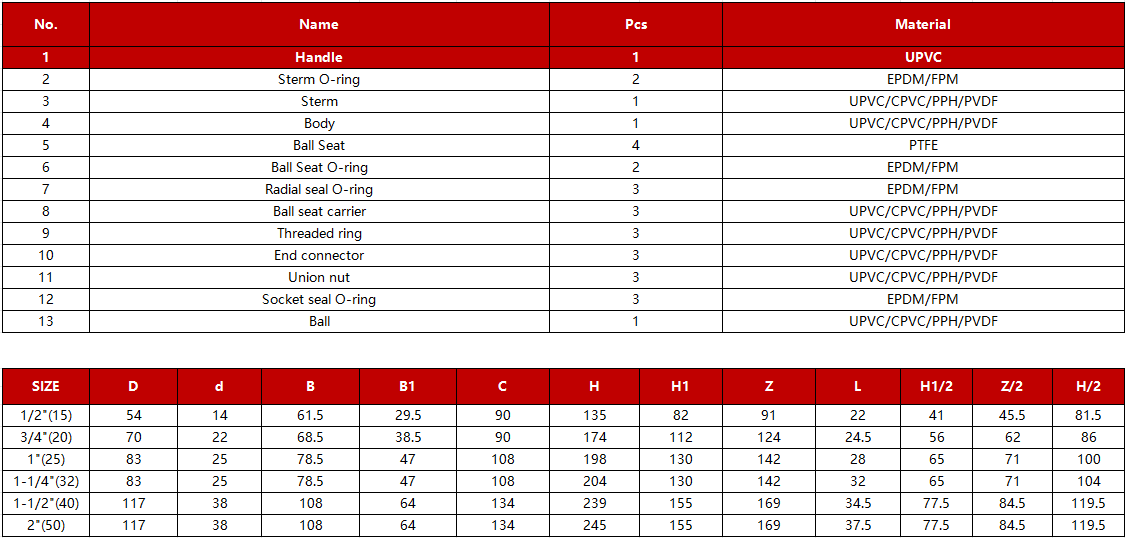

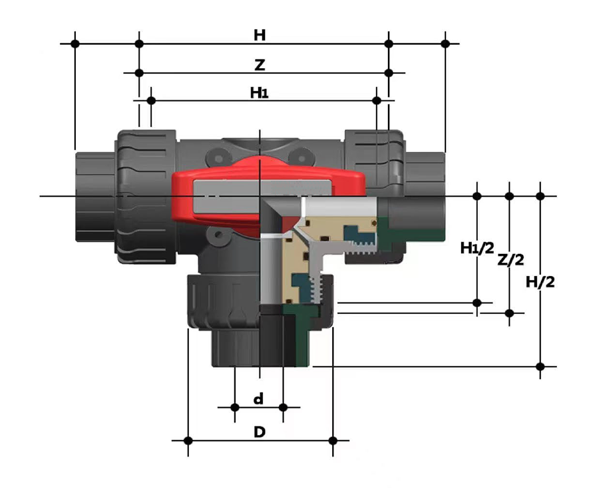

Technical Parameter
Size: 1/2"~2"
Socket end: DIN/ANSI/JIS/CNS
Thread end:BSPT/NPT
Pressure Rating: PN10
