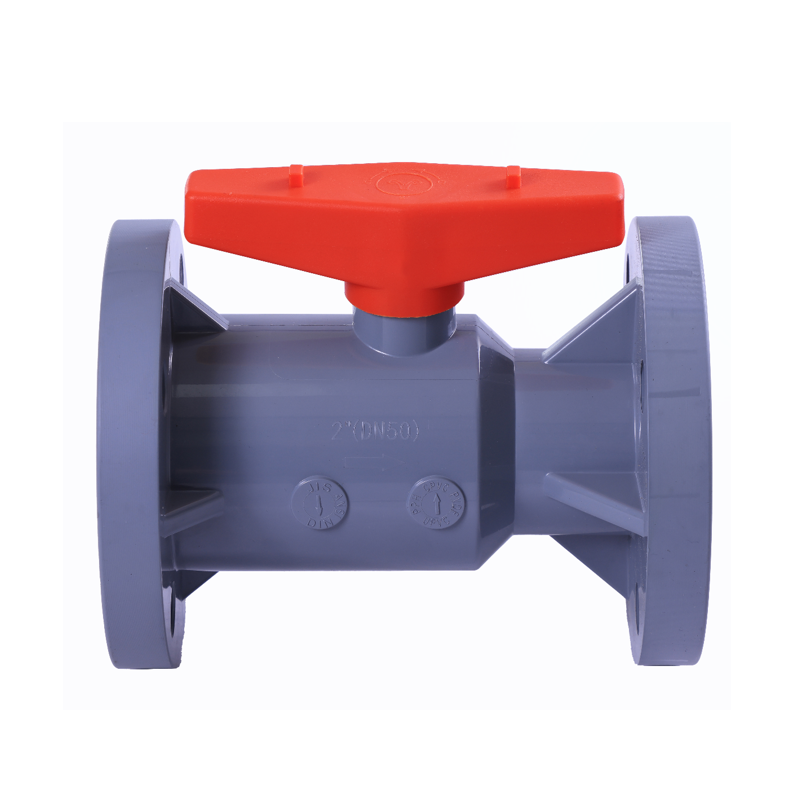

A CPVC flange type ball valve is an industrial valve designed with flanged connections for secure integration into piping systems. It provides reliable shut-off capability for corrosive and chemical applications while offering enhanced material properties.
Key Features:
• Flange and valve body integrally molded for single-piece construction.
• Fewer potential leakage points compared to assembled designs.
• Structurally stronger than true union flange type valves.
• Cost-effective solution with competitive pricing.

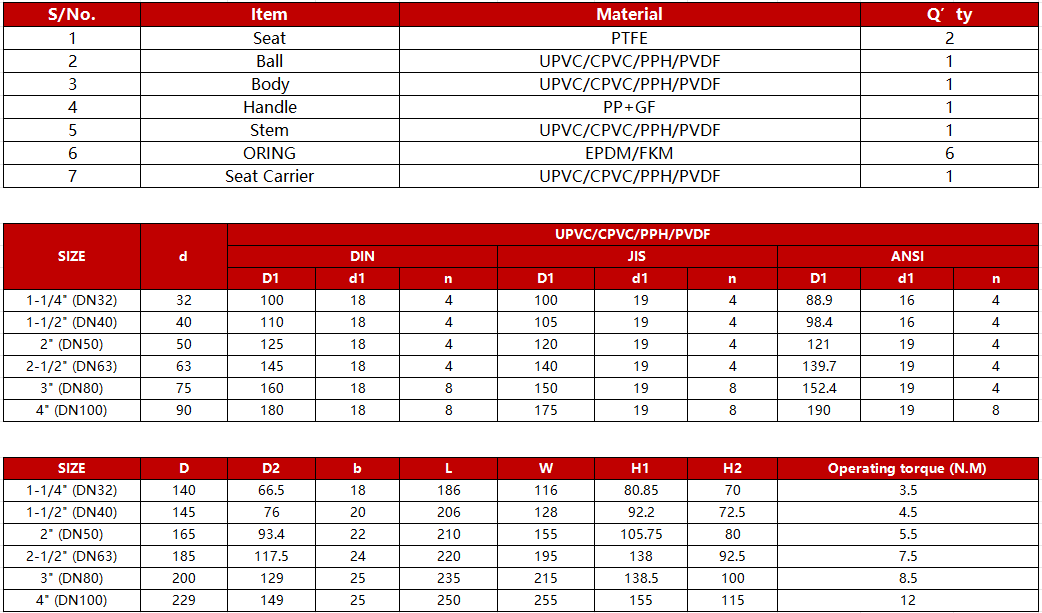

Technical Parameter
Size: 1-1/4"(DN32)~4"(DN100)
Flange end: DIN/ANSI/JIS
Prssure Rating: PN10
