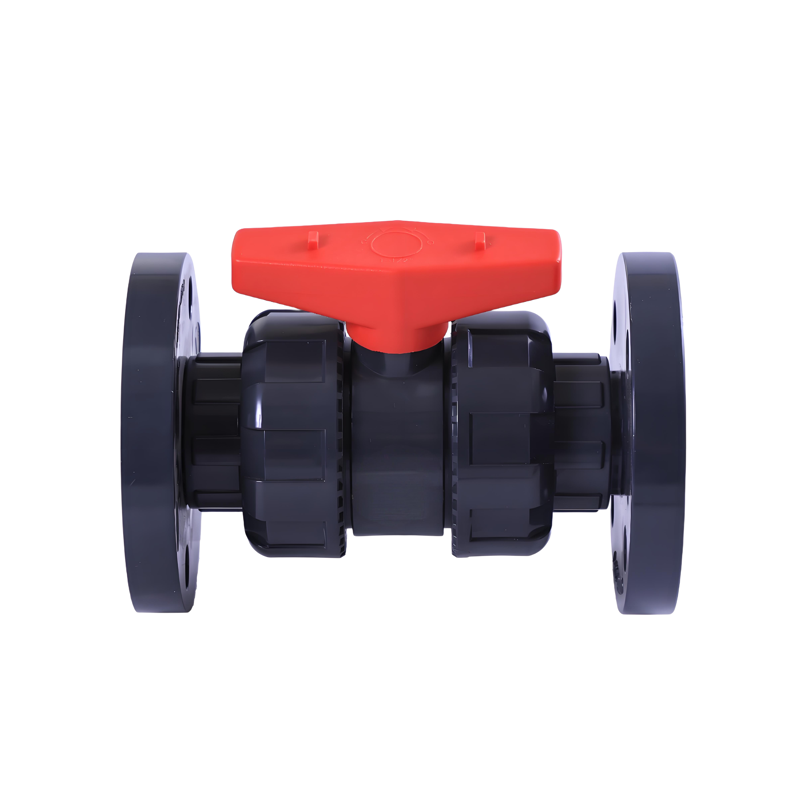

In order to meet need of flange connection, the flanged type double union ball valve combile the both design of true union and flange, which is convenient for installation and disassembly. This versatile structure allows upvc ball valve flange type to cover almost common needs and suitable for applications ranging from small equipment to large pipeline systems

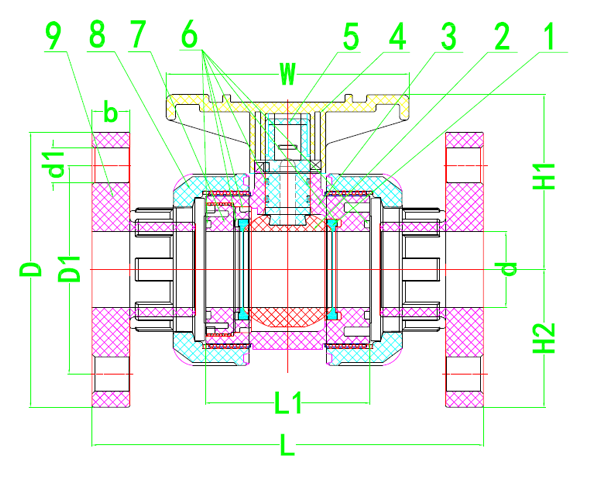

The structure of the flange type true union ball valve's body—consistent with the design of upvc ball valve flange type—is similar to that of a true union ball valve, allows easy installation and removal without disturbing the entire pipeline. But flange end.

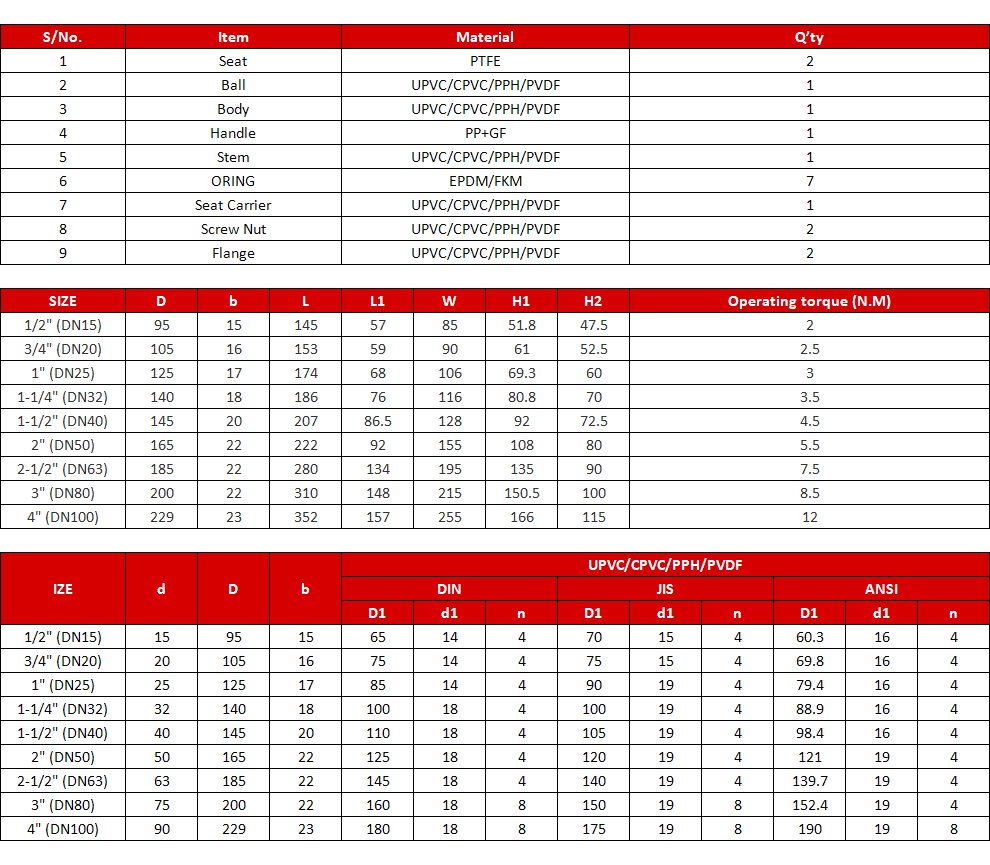

Technical Parameter
Size: 1/2"(DN15)~4"(DN100)

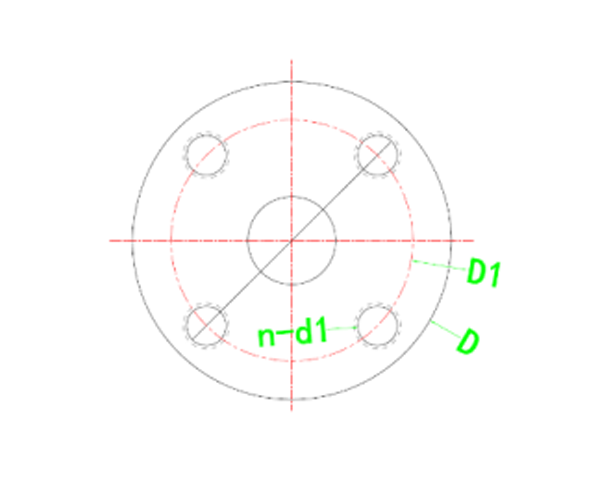

Flange end: DIN/ANSI/JIS
Prssure Rating: PN10
