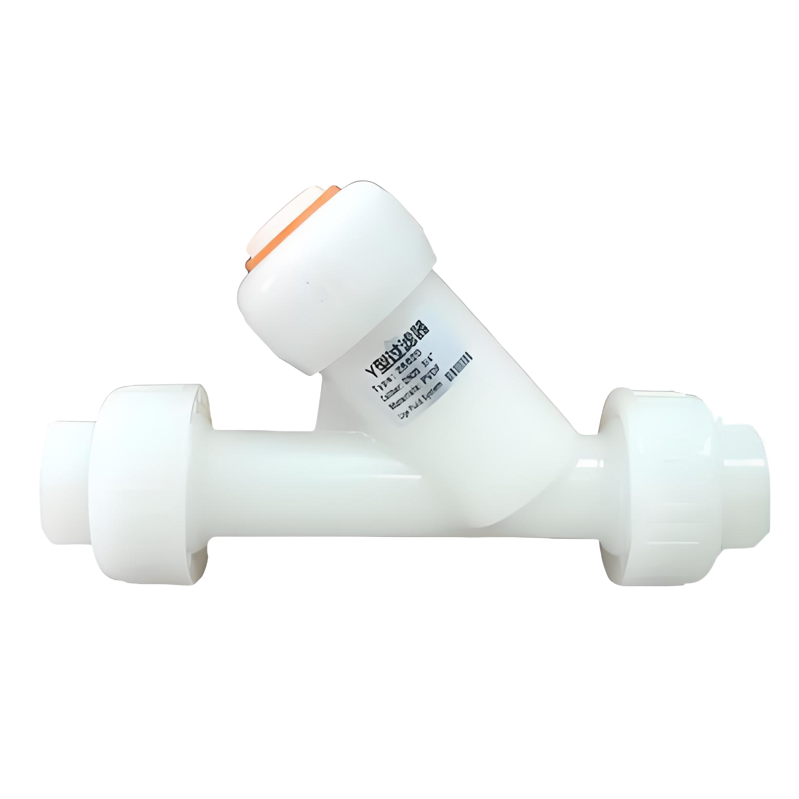

The PVDF Y Strainer maintains the same efficient Y-shaped filtration design as standard plastic strainers while delivering enhanced chemical resistance through premium PVDF material. PVDF Y strainers are essential pipeline components that mechanically filter contaminants like rust, sand particles, and solid debris from liquids, protecting downstream equipment from wear, clogging, and damage.
Impurity filtration: The type of PVDF y strainer intercepts impurities such as rust, sand particles, and solid particles in the fluid through an internal filter screen, ensuring the cleanliness of the fluid at the outlet.
Equipment protection: As a key component, the UPVC Y strainer is usually installed at the inlet end of equipment, such as pressure reducing valves and pressure relief valves, to prevent impurities from damaging key components and extend the service life of the equipment.

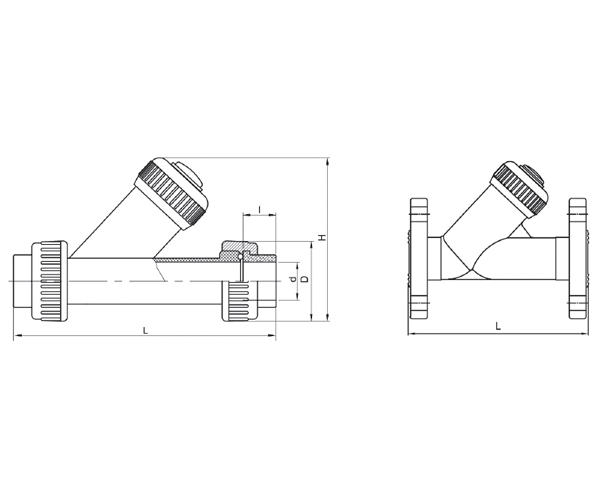

Structural Features and Advantages: Y-shaped design: The shape is Y, with a simple structure, easy installation, and the filter screen can be disassembled for cleaning, making maintenance convenient.
Efficient sewage discharge: Large dirt-holding capacity, pressure difference triggers automatic cleaning function (for some models), reducing manual intervention.

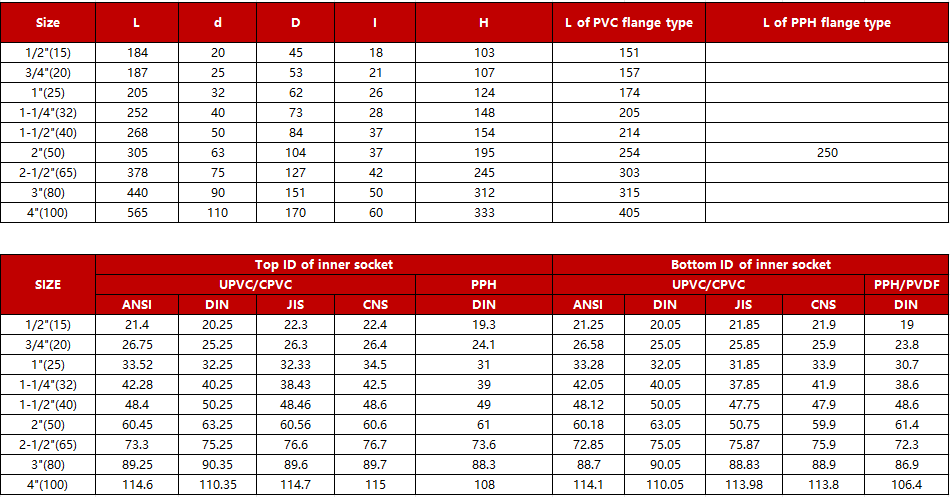

Technical Parameter
Size: 1/2 " (DN15)~4 " (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
