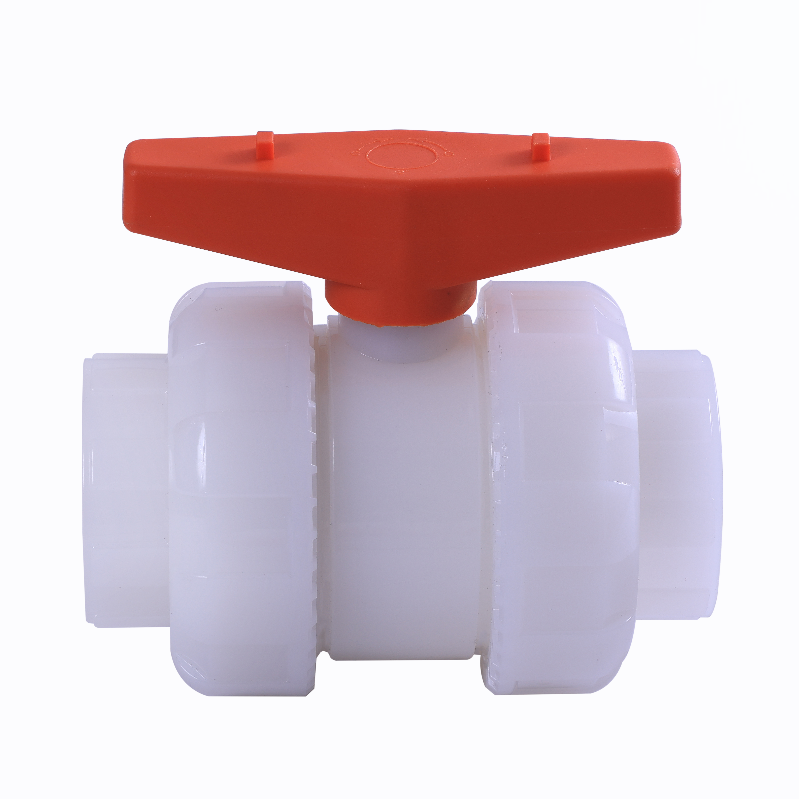

The PVDF True Union Ball Valve shares identical structural features with other plastic material ball valves while offering unique material advantages that set pvdf true union ball valve apart in industrial applications.
Key Features of PVDF True Union Ball:
Low fluid resistance for optimal flow efficiency.
Compact and lightweight design for easy installation.
Excellent sealing performance with reliable shut-off capability.
90° quick operation for fast opening/closing action.
Simple maintenance with true union design for easy disassembly.
Our PVDF true Union Ball Valves—doubling as a high-performance isolation valve for plastic pipe—are born from our long-term experience, with small & stable torque, long life span, and no requirement for flow direction that enhances the practicality of pvdf true union ball valve in diverse industrial scenarios.

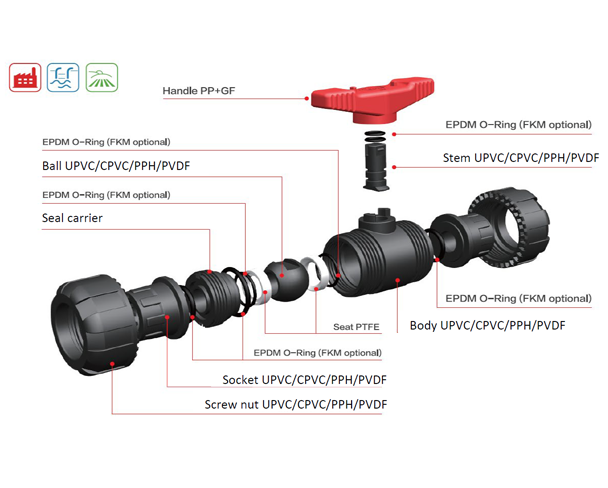

Matt's surface of lever provides a good holding feel;Produced from an advanced material and is suitable for a critical environment.
EPDM Seal with superior anti-corrosive performance; FKM Seal is optional with superior performance.
PTFE Seat is specially designed so that the friction with the ball is reduced.
Balls are lathed and grinded to ensure roundness and provide a reliable seal effect as well as smooth open action.
NC lathe works are adapted to all critical dimensions to ensure tight matching.
Socket End/Threaded End/Flange connections & PPH socket are available.

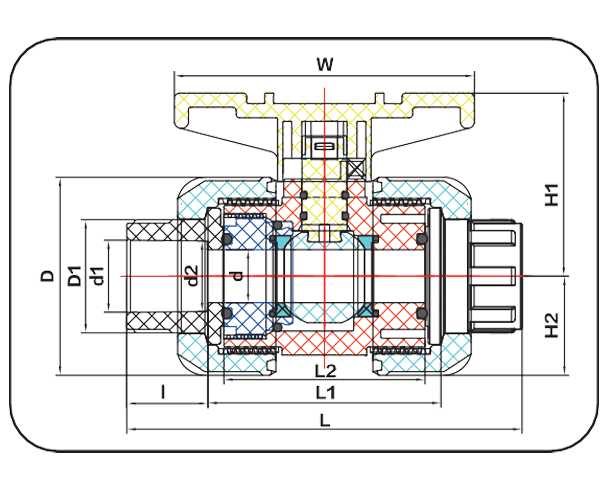

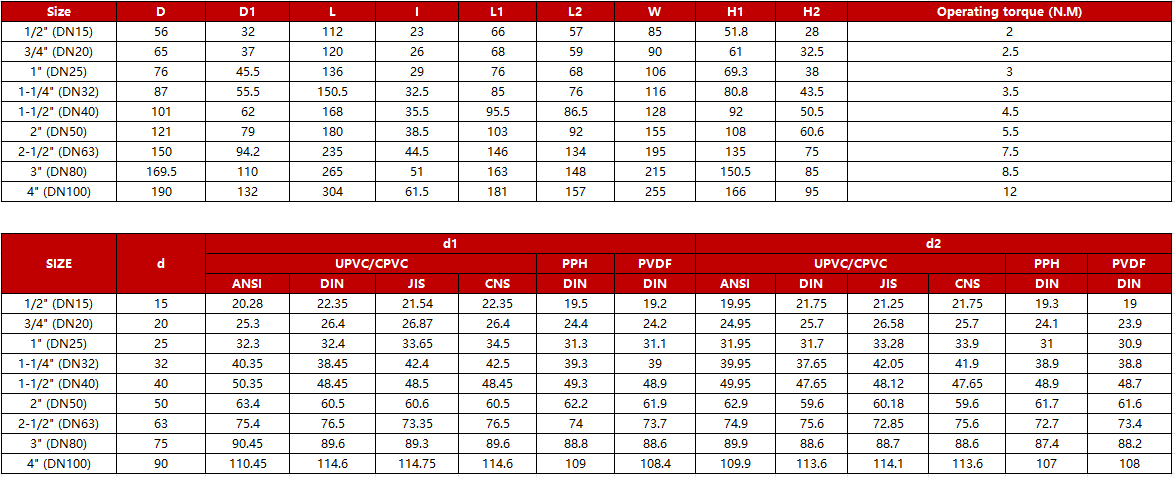

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN162-1/2" (DN65)-4" (DN100) PN10
