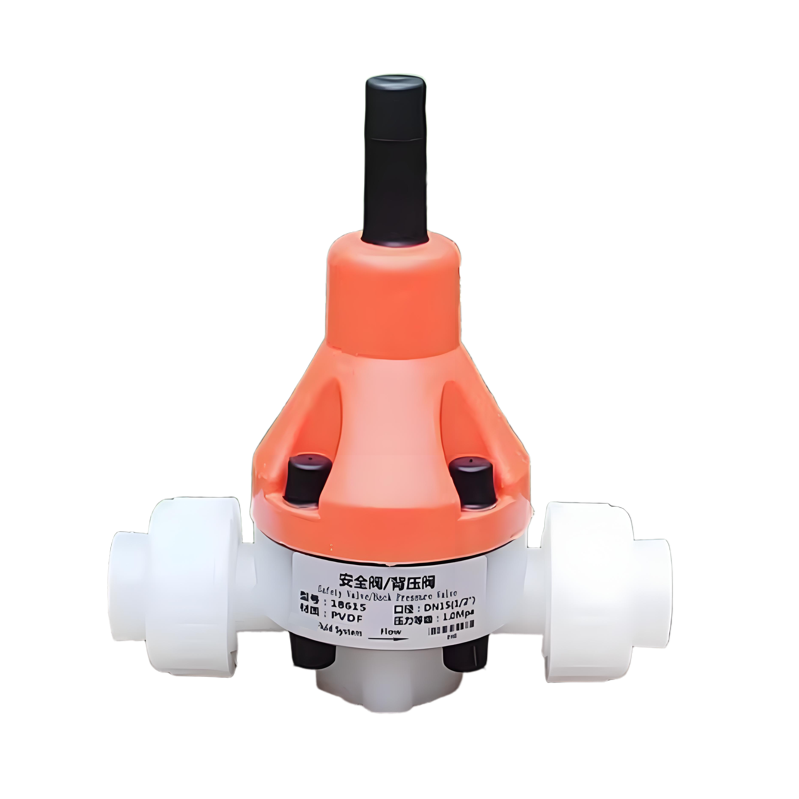

The PVDF Safety Valve features the identical functional design as standard plastic safety valves while providing enhanced performance through premium PVDF construction. This pressure relief device maintains the same core components - including seat, valve cover, diaphragm, spring and pressure adjustment screw - ensuring reliable operation in demanding applications.
Release the pipeline pressure to ensure the stability of the system pressure;
Protect the safety of the pump and the normal operation of the system;
Used in conjunction with a pulse damper to reduce the harm of water hammer to the system and achieve superior low-vibration adjustment effects;
Reduce the peak value of flow rate fluctuations and protect the pipeline system from pressure fluctuations;
The diaphragm adopts advanced PTFE+rubber compound technology, which is suitable for almost all corrosive fluids, and the sealing is reliable and leak-free.

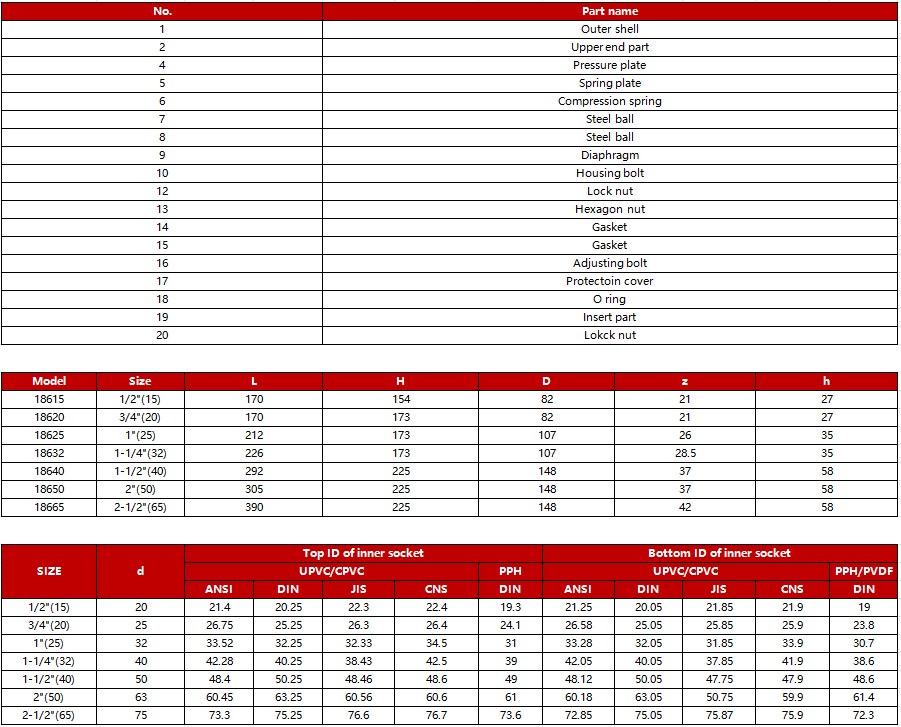

Technical Parameter
Material: UPVC/PPH/CPVC/PVDF
Working pressure: 0~1.0 Mpa, 0.2~1.6 Mpa
Size: DN15~DN65
Connect method: Socket end, flange end, thread end
Diaphragm material: PFTE+EPDM compsite
