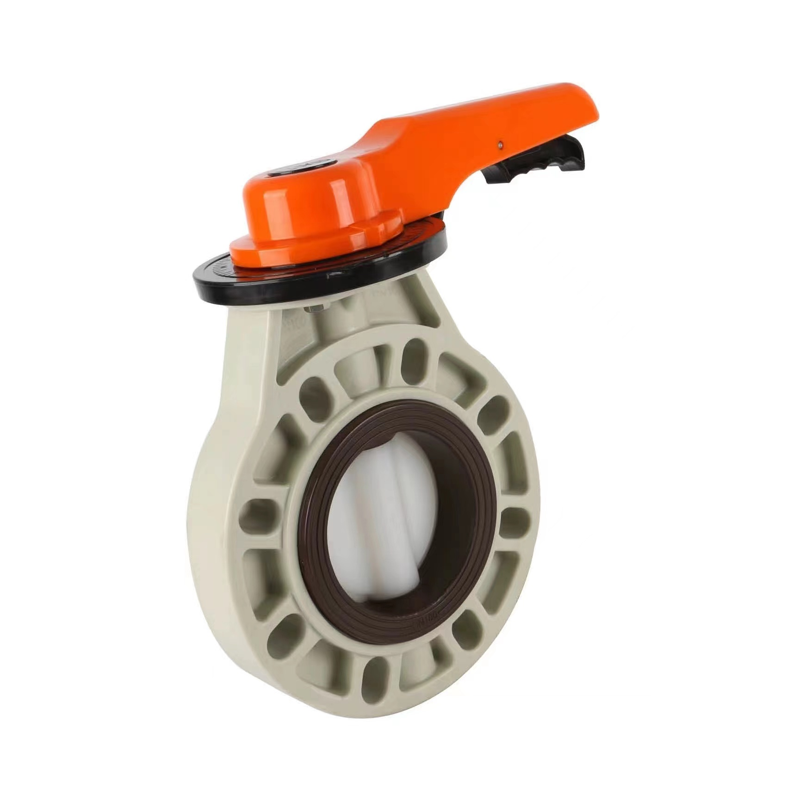

The PVDF Handle Type Butterfly Valve offers enhanced material performance. This quarter-turn valve efficiently controls fluid flow through a 90° rotation of its circular disc ("butterfly") mounted on a central shaft.
The handle type butterfly valve is a manual operation variant, where a handle is used to open or close the valve.
The valve is light, easy to disassemble and repair, and can be installed at any position.
The structure of pvdf valves is simple, and the operating torque is small, ensuring effortless manual operation even in long-term use.
The flow characteristics tend to be straight and the adjustment performance is good.

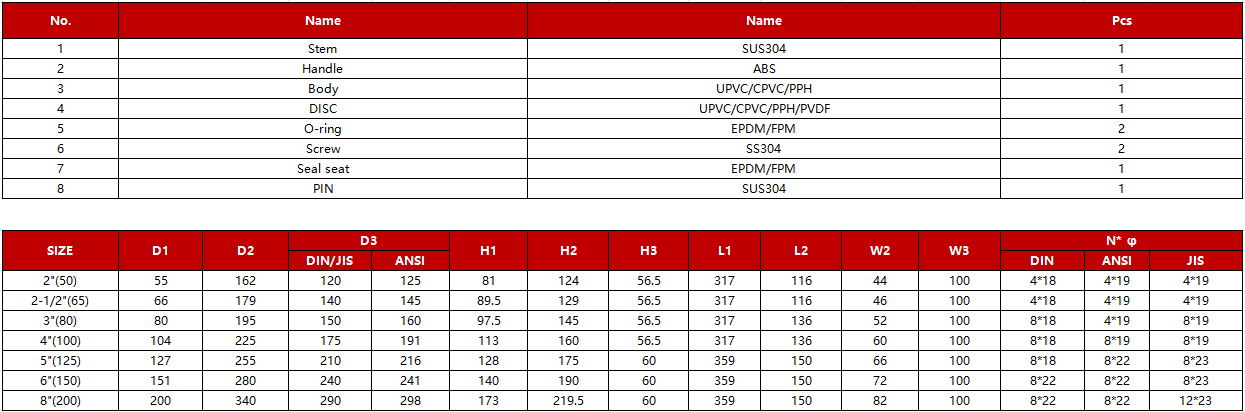

Technical Parameter
Size: 2"~8"
Flange end: DIN/ANSI/JIS
Pressure Rating: PN16
