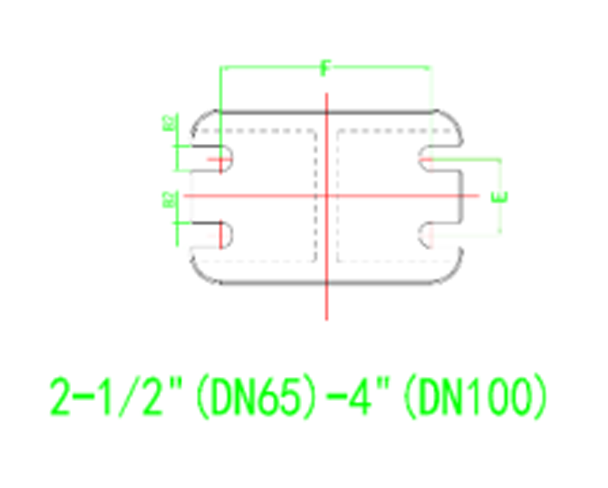

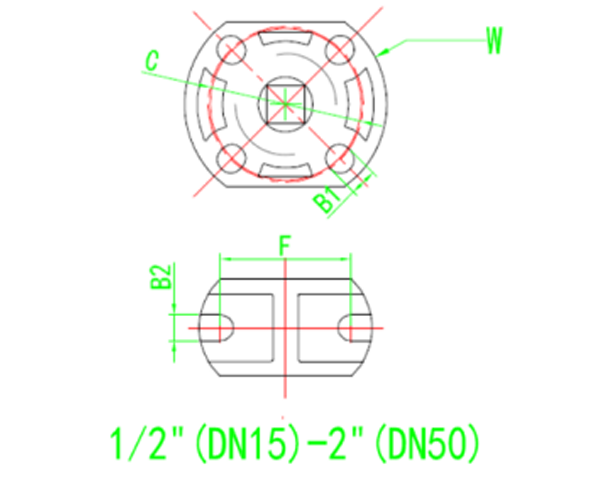

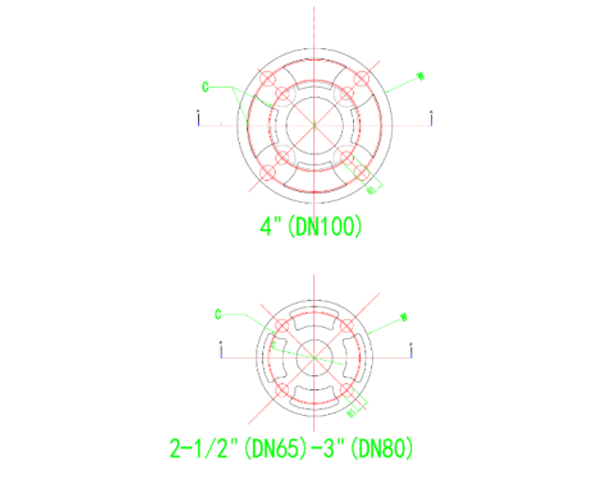

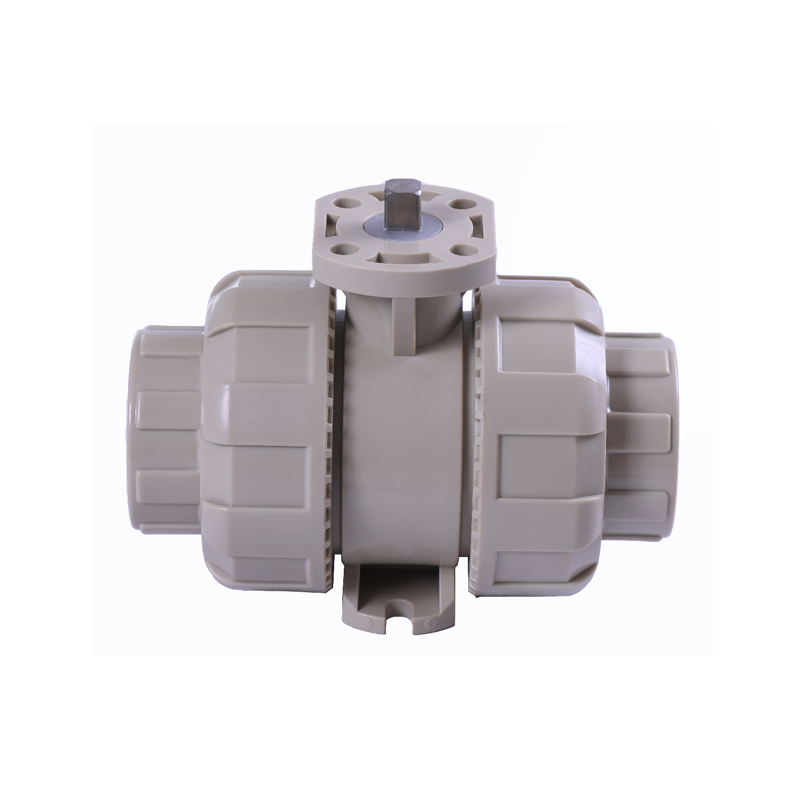

Our PPH True Union Ball Valves are engineered from decades of industrial expertise, offering efficient, rapid actuator installation. All sizes feature an integrated ISO 5211 mounting pad for seamless compatibility with pneumatic/electric actuators.
●Neck of the pad is special designed to enlarge the installation spaceof actuators. Adaptor to the actuator is made of SUS 304 to besuitable for critical environment.
●EPDM Seal with superior anti-corrosive performance; FKM Seal isoptional with more excellent performance.
●PTFE Seat is specially designed so that friction with ball is reduced.Balls are lathed and grinded to ensure roundness and providereliable seal effect as well as smooth open action.
●NC lathe works are adapted on all critical dimensions to ensure tight matching.
●Socket End/Threaded End connections are available.

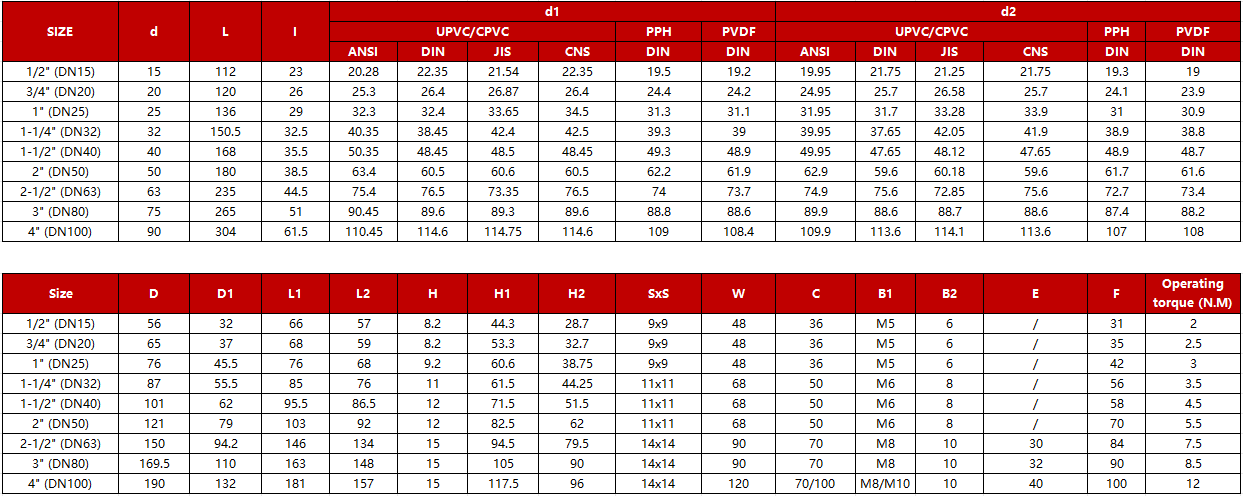

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN16 2-1/2"(DN65)-4" (DN100) PN10
