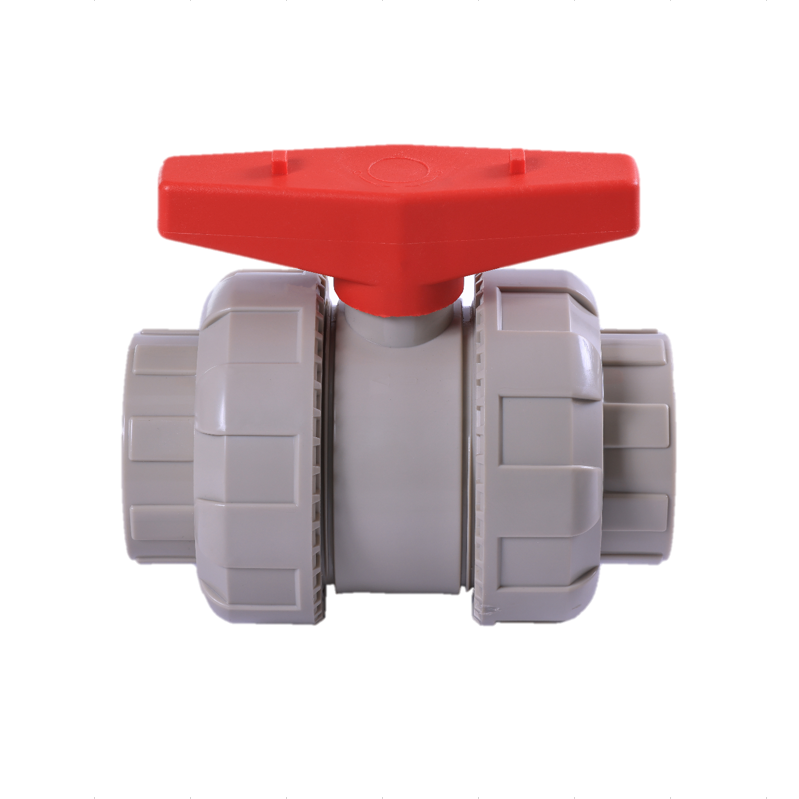

Low fluid resistance – The smooth bore design of the pph true union ball valve ensures minimal pressure drop, optimizing flow efficiency in industrial systems.
Compact and lightweight – Simple structure with reduced installation space requirements.
Reliable sealing performance – PTFE seats and EPDM/FPM seals provide leak-proof operation even in corrosive environments.
Quick 90° operation – Effortless handle rotation from fully open to closed positions.

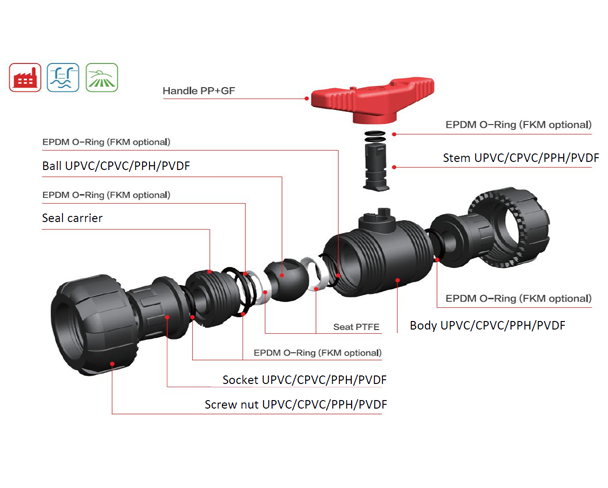

Easy maintenance – True union design allows swift disassembly without pipe removal, simplifying part replacement.
Our true Union Ball Valves—crafted as high-performance pph true union ball valve leveraging our long-term experience—boast small & stable torque, long life-span, and no requirement for flow direction that enhances the practicality of isolation valve for plastic pipe in plastic piping systems.
Matt surface of lever provides good holding feel; Produced by advanced material is suitable for critical environment.
EPDM Seal with superior anti-corrosive performance; FKM Seal is optional with more excellentperformance.
PTFE Seat is specially designed so that friction with ball is reduced.
Balls are lathed and grinded to ensure roundness and provide reliable seal effect as well as smooth open action.
NC lathe works are adapted on all critical dimensions to ensure tight matching.
Socket End/Threaded End/Flange connections & PPH socket are available.

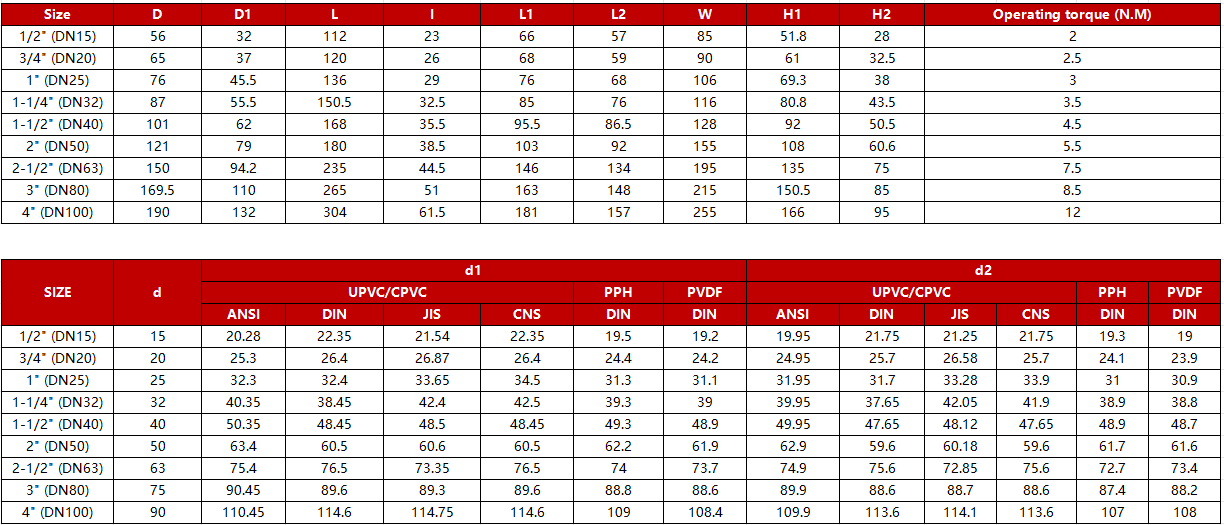

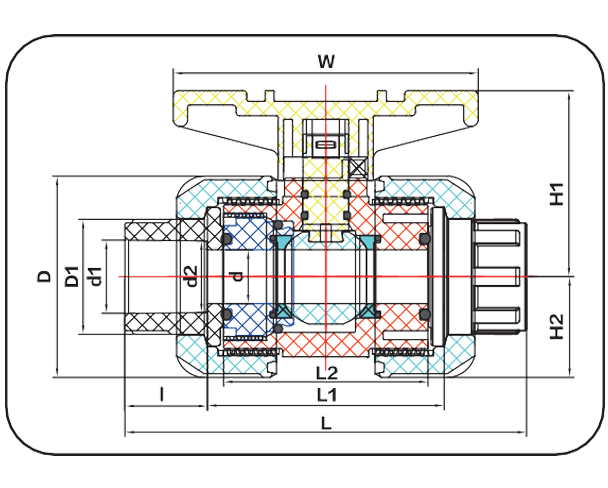

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN16 2-1/2"(DN65)-4" (DN100) PN10
