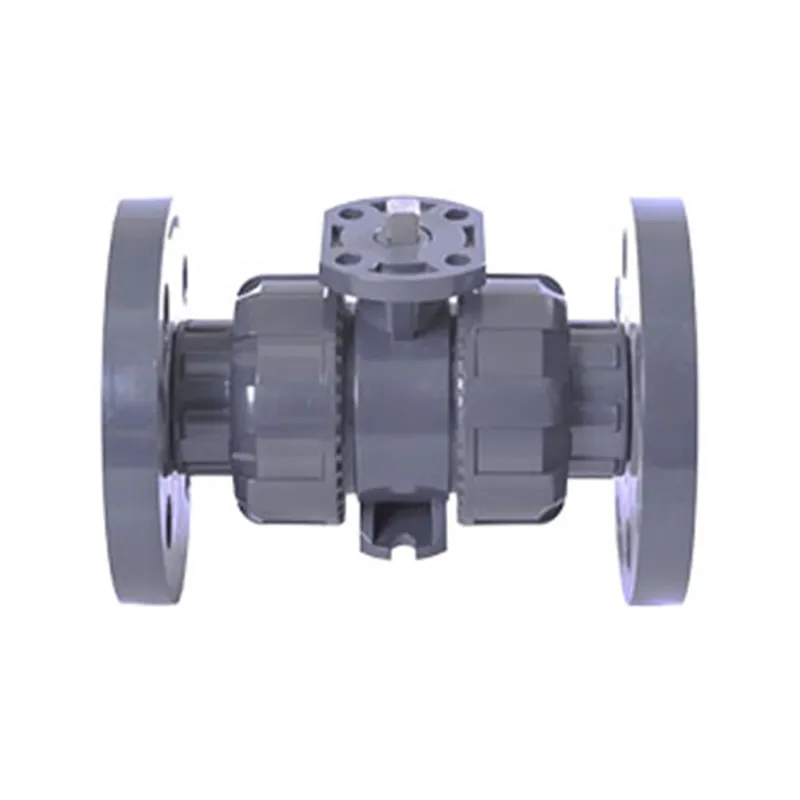

Pre-installed ISO5211 mounting pad - Ready for immediate actuator (pneumatic/electric) installation.
Flange-end design - Ensures leak-proof, high-pressure connections to piping systems.
Enhanced thermal resistance - Withstands continuous service up to 93°C (200°F) for demanding applications.
Maintains true union convenience - Enables easy disassembly for maintenance without pipe cutting.
The ball valve has injected IS0 5211 mounting pad with the ball valve together. No need assemble SS304 mounting pad again.

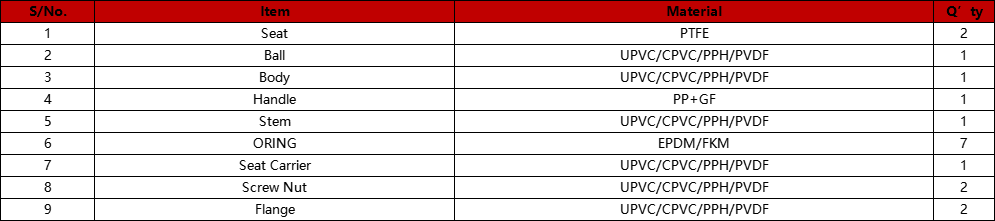

The adaptor is SS304 (strong enough for pneumatic actuator).
Except adaptor, the pad is plastic (More acid resistant).

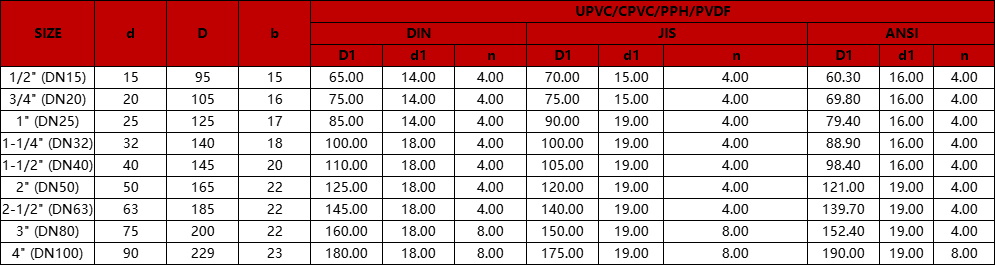

Flange end.
More competitive on prices.

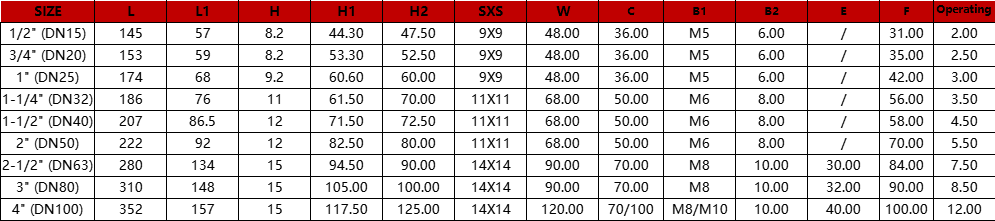

Size from DN15 to DN 100.
