Excellent flow characteristics with minimal fluid resistance.
Lightweight and compact design for easy installation.
Bubble-tight seal with PTFE seats for leak-proof operation.
90° quick operation (quarter-turn) for instant open/close control.
True union design enables simple maintenance and part replacement.
Our true Union Ball Valves are born by our long-term experience, with small & stable torque that ensures precise shut-off performance for isolation valve for plastic pipe, a long life-span, and no requirement for flow direction.
Matt surface of lever provides good holding feel; Produced by advanced material is suitable for critical environment.
EPDM Seal with superior anti-corrosive performance; FKM Seal is optional with more excellentperformance.
PTFE Seat is specially designed so that friction with ball is reduced.
Balls are lathed and grinded to ensure roundness and provide reliable seal effect as well as smooth open action.
NC lathe works are adapted on all critical dimensions to ensure tight matching.
Socket End/Threaded End/Flange connections & PPH socket are available.

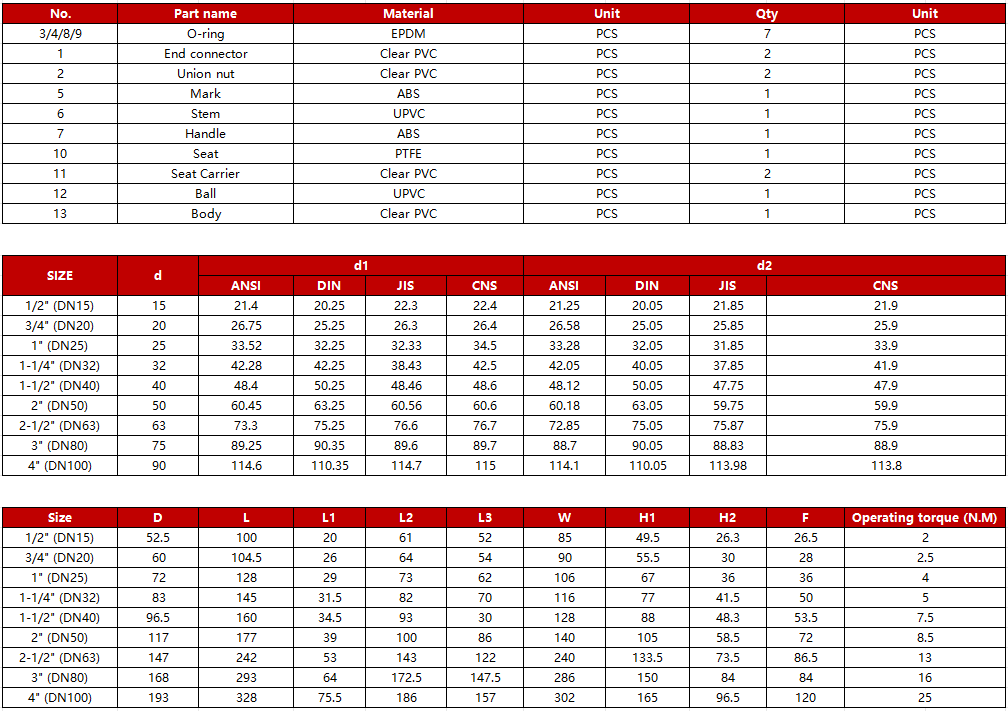

Technical Parameter
Size: 1/2'' (DN15)~4'' (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
