Union is a type of pipe fitting used in piping systems to connect two pipes together while allowing for easy disassembly.
Unlike glued or solvent-welded joints, a union can be unscrewed, making it useful for maintenance, repairs, or modifications without cutting the pipe.
Advantages of Unions:
Easy Maintenance – Can be opened without cutting pipes.
Leak-proof – Sealed with a gasket or O-ring.
Chemical & Corrosion Resistant – Ideal for aggressive fluids.
Lightweight & Durable – Unlike metal unions, uPVC won’t rust.

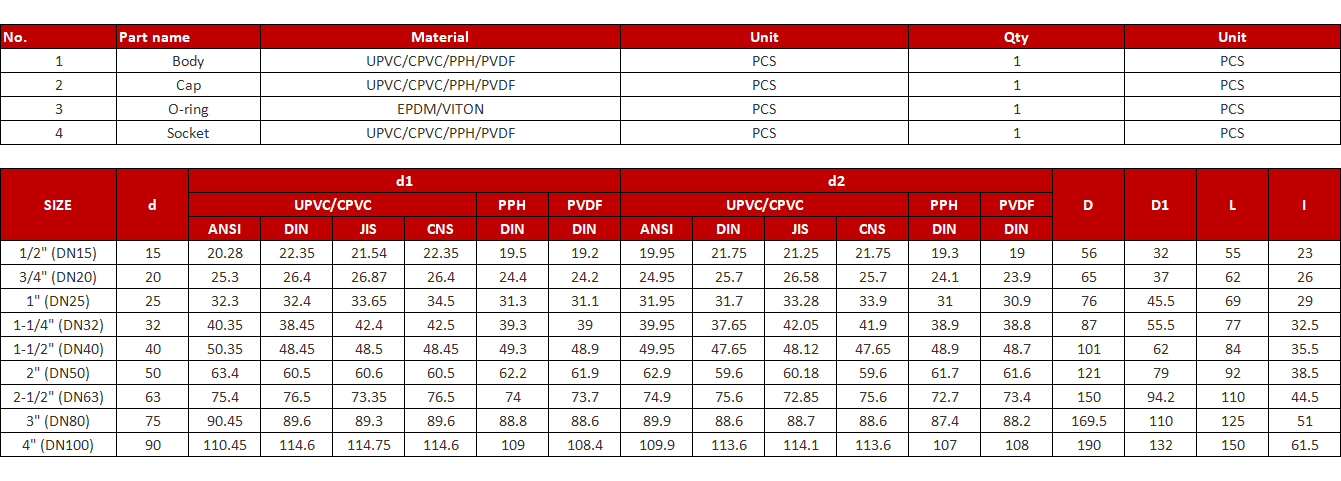

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN16 2-1/2"(DN65)-4" (DN100) PN10
