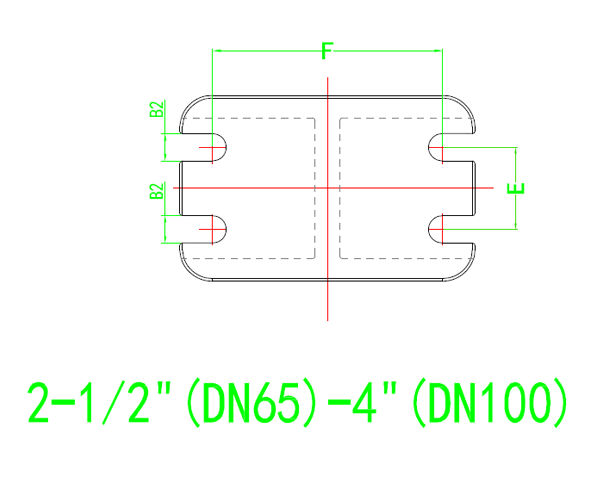

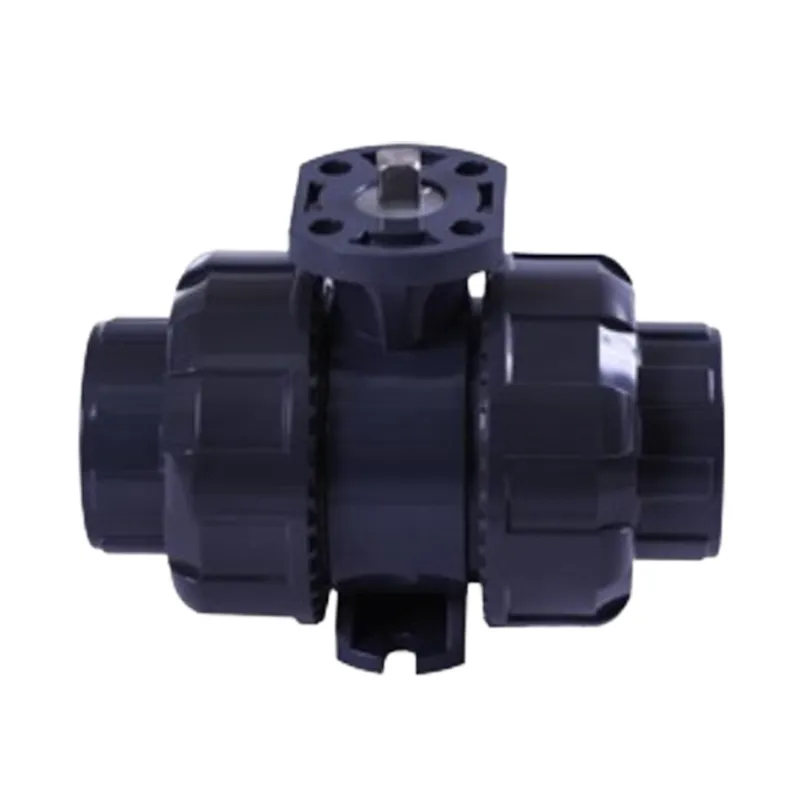

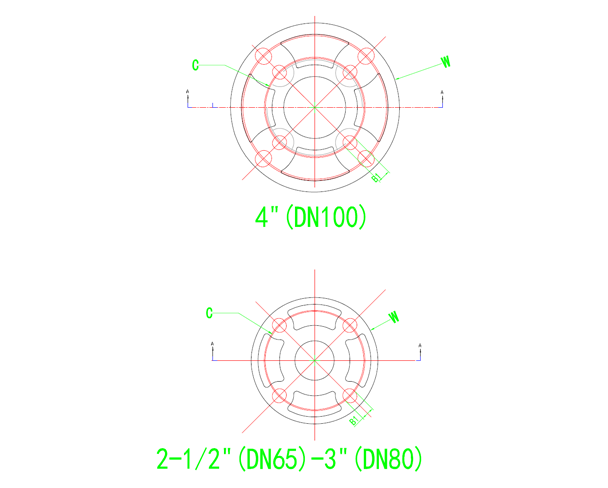

Our True Union Ball Valves are born by our long-term experience.efficient, fast, and simple to install actuators on. Mounting Pad with lSO5211 pattern is on all sizes.
●Neck of the pad is special designed to enlarge the installation spaceof actuators. Adaptor to the actuator is made of SUS 304 to besuitable for critical environment.
●EPDM Seal with superior anti-corrosive performance; FKM Seal isoptional with more excellent performance.
●PTFE Seat is specially designed so that friction with ball is reduced.Balls are lathed and grinded to ensure roundness and providereliable seal effect as well as smooth open action.
●NC lathe works are adapted on all critical dimensions to ensure tight matching.
●Socket End/Threaded End connections are available.

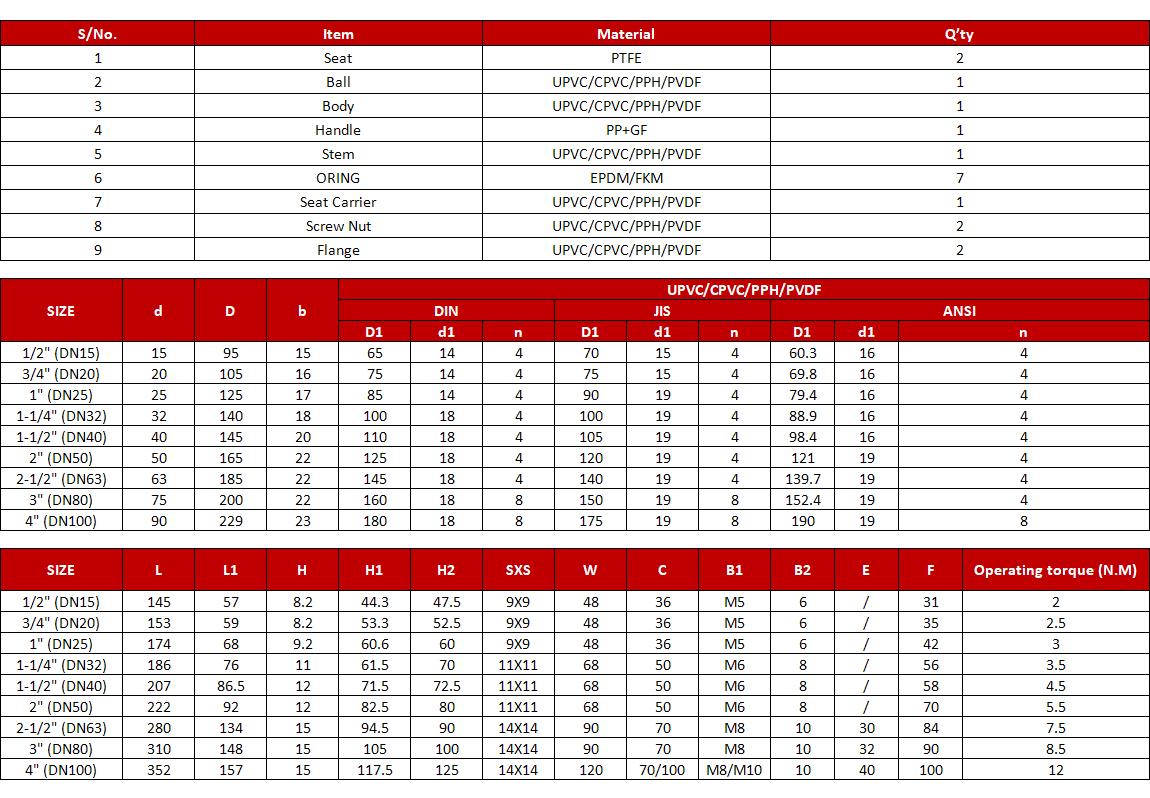

Technical Parameter
Size: 1/2"(DN15)~4"(DN100)
Flange end: DIN/ANSI/JIS
Prssure Rating: PN10
