The three-way ball valve can change the flow direction of the medium by rotating the ball. Our three-way ball valves include type T and type L. The T-type three-way ball valve can connect three orthogonal pipes to each other and cut off the third channel, and is suitable for diversion and convergence. The L-type three-way ball valve can only be connected to two orthogonal pipes and is used for medium distribution.

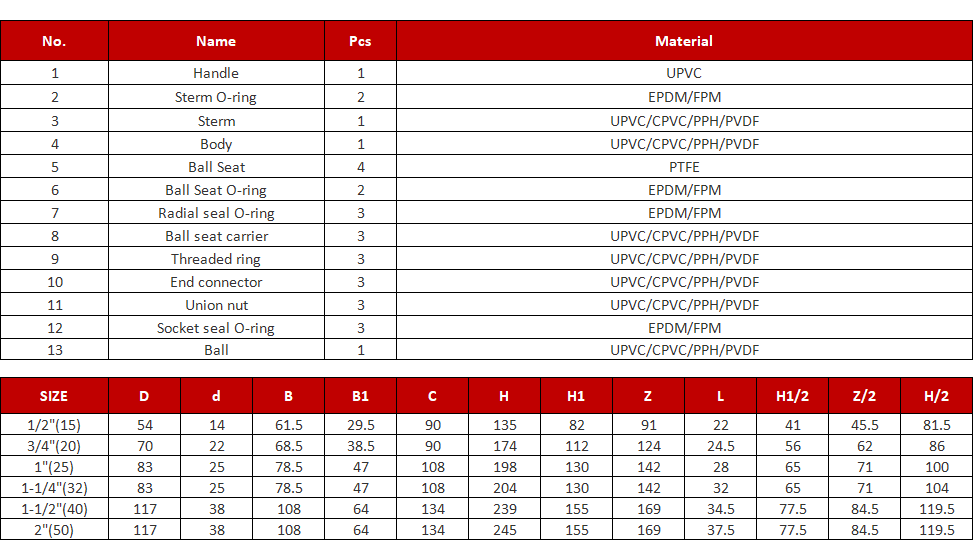

Technical Parameter
Size: 1/2"~2"
Socket end: DIN/ANSI/JIS/CNS
Thread end: BSPT/NPT
Pressure Rating: PN10
