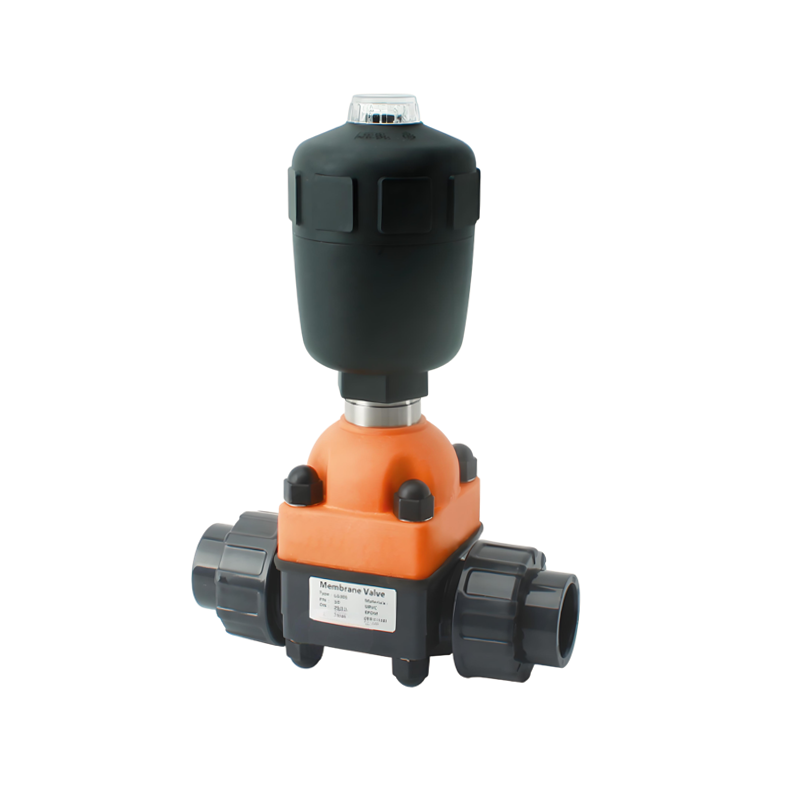

The pneumatic actuator receives signals from the control system, drives the valve stem to move the valve core, thereby achieving the opening and closing of the diaphragm and realizing the purpose of controlling the on-off of the fluid and regulating the flow rate.
Single action, normal closed.
Chemical Processing (acids & alkalis)
Faster & Automated Operation (remote control possible）
Reduces Contamination Risk (no stem leakage).

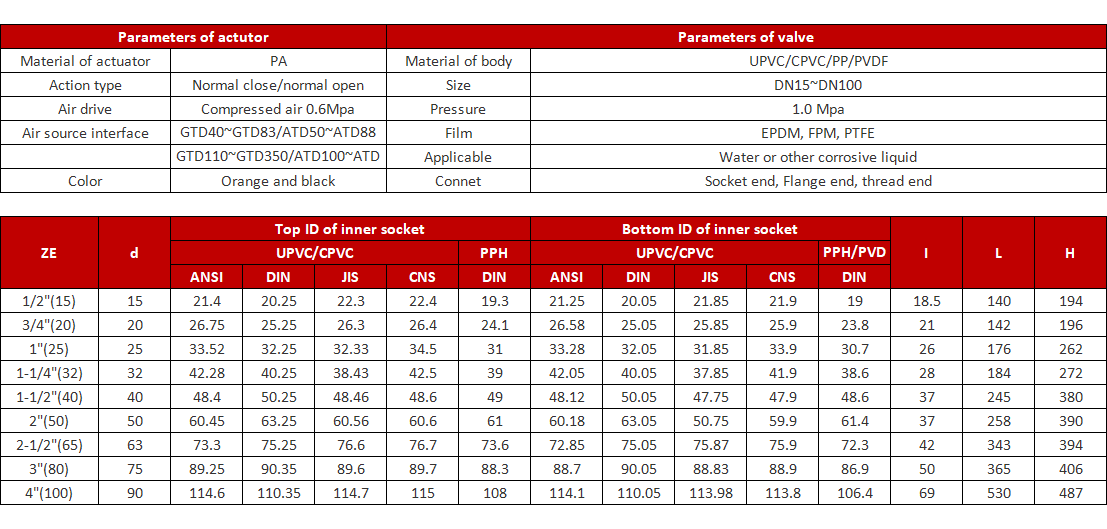

Technical Parameter
Size: 1/2 " (DN15)~4 " (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
