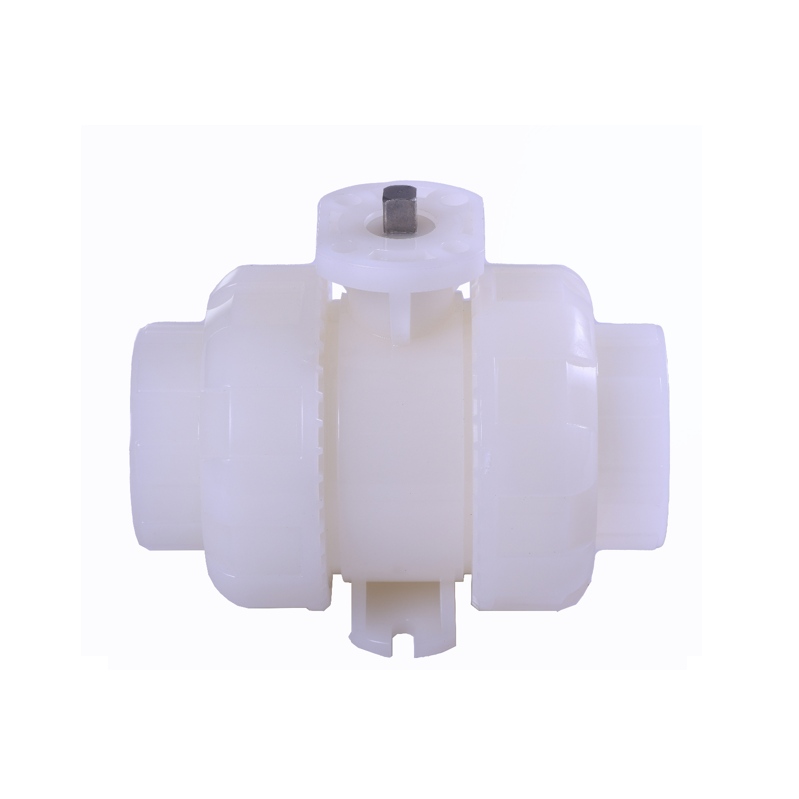

Our PVDF True Union Ball Valve with Directly Mounting Pad combines identical mechanical functionality with PVDF's superior material properties. The product inherits our extensive valve manufacturing expertise to deliver optimal actuator mounting efficiency.
●Neck of the pad is special designed to enlarge the installation spaceof actuators. Adaptor to the actuator is made of SUS 304 to besuitable for critical environment.
●EPDM Seal with superior anti-corrosive performance; FKM Seal is optional with more excellent performance for pvdf valves.
●PTFE Seat is specially designed so that friction with ball is reduced.Balls are lathed and grinded to ensure roundness and providereliable seal effect as well as smooth open action.
●NC lathe works are adapted on all critical dimensions to ensure tight matching.
●Socket End/Threaded End connections are available.

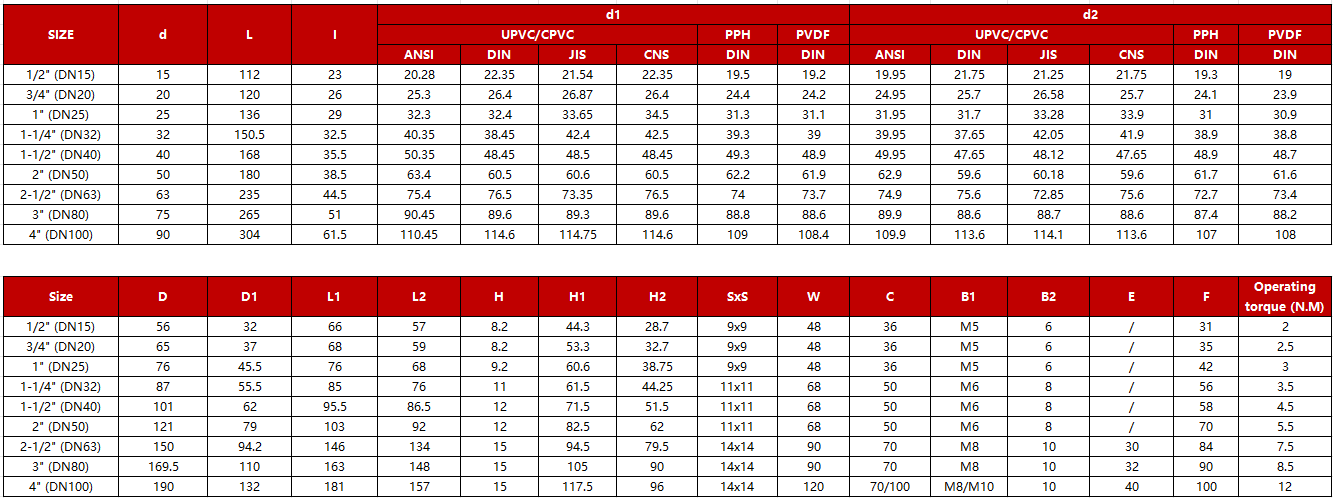

Technical Parameter
Size: 1/2" (DN15)~4" (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2" (DN15)-2" (DN50) PN162-1/2" (DN65)-4" (DN100) PN10
