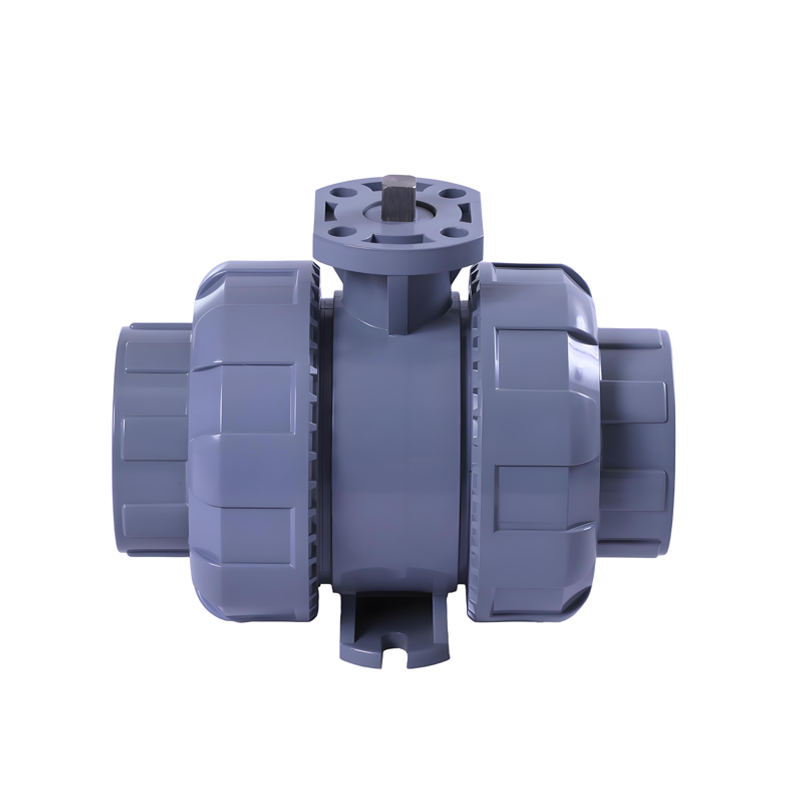

Pre-installed ISO5211 mounting pad - Enables quick installation of pneumatic/electric actuators.
High-temperature stability - Superior thermal performance.
True union design - Allows tool-free maintenance without pipe cutting.
90° quick operation - Quarter-turn actuation for immediate flow control.
●Neck of the pad is special designed to enlarge the installation space of actuators. Adaptor to the actuator is made of SUS 304 to be suitable for critical environment, a feature also integrated into the plastic isolation valve.
●EPDM Seal with superior anti-corrosive performance; FKM Seal isoptional with more excellent performance.
●PTFE Seat is specially designed so that friction with ball is reduced.Balls are lathed and grinded to ensure roundness and providereliable seal effect as well as smooth open action.
●NC lathe works are adapted on all critical dimensions to ensure tight matching.
●Socket End/Threaded End connections are available.
